1777109 - Phoenix Contact

Description: MSTBV 2,5/ 5-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: MSTBV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patter

Download 1777109 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1777109 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

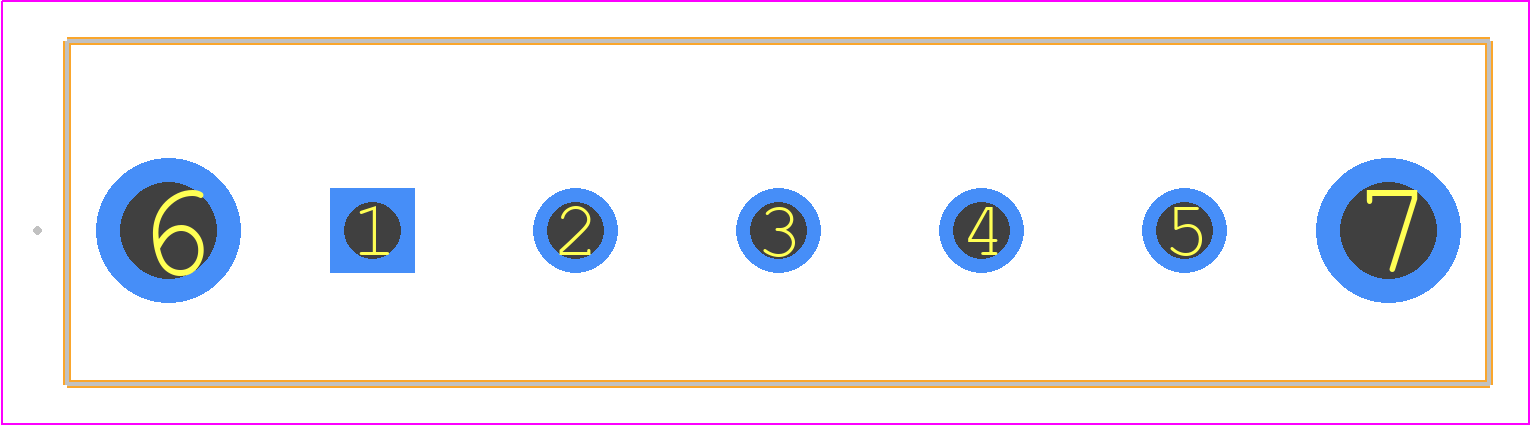

1777109 - Phoenix Contact PCB footprint - Other - Other - 1777109
click to zoom
3D Models
1777109 - Phoenix Contact - 3D model - Other - 1777109
click to zoom

1777109 Details

  • Manufacturer Part Number:

    1777109

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    PBT, UL 94V-0, SAFETY APPROVAL RS; VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CCA; CB; CSA; CUL; GL; GOST

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1777109 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and assembly guidelines for optimal results.
  • Yes, the 1777109 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1777109 connector is rated for operating temperatures between -40°C and 125°C and can withstand humid environments, but it's essential to follow Phoenix Contact's guidelines for environmental considerations.
  • Yes, the 1777109 connector is designed to be compatible with other Phoenix Contact products, but it's essential to verify compatibility and follow the manufacturer's guidelines for specific applications.
  • The maximum current rating for the 1777109 connector is 12 A per contact, but it's crucial to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
