Part Image

1777170 - Phoenix Contact

Description: MSTBV 2,5/12-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: MSTBV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pat

Download 1777170 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1777170 - Phoenix Contact - PCB symbol
click to zoom

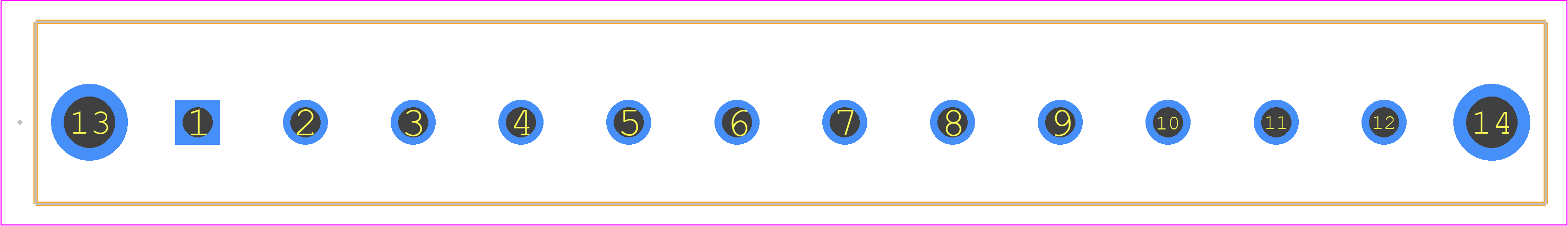

PCB Footprints
1777170 - Phoenix Contact PCB footprint - Other - Other - 1777170
click to zoom
3D Models
1777170 - Phoenix Contact - 3D model - Other - 1777170
click to zoom

1777170 Details

  • Manufacturer Part Number:

    1777170

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.77

  • Additional Feature:

    PBT, UL 94 V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL; VDE; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1777170 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific application and Phoenix Contact's guidelines for precise torque values.
  • Yes, the 1777170 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure connections to maintain reliability in high-vibration applications.
  • The 1777170 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP rating.
  • While the 1777170 connector is designed for use with Phoenix Contact's products, it may be compatible with other manufacturers' components. However, it's essential to verify compatibility and ensure proper mating and performance before using it with non-Phoenix Contact components.
  • The 1777170 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1777170 Overview

Use the download button to access the 1777170 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17771, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
