1777251 - Phoenix Contact

Description: MSTBV 2,5/20-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 1, number of positions: 20, number of connections: 20, product range: MSTBV 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pat

Download 1777251 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

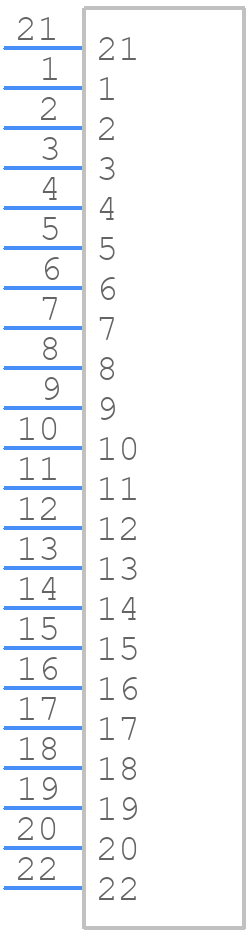

1777251 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

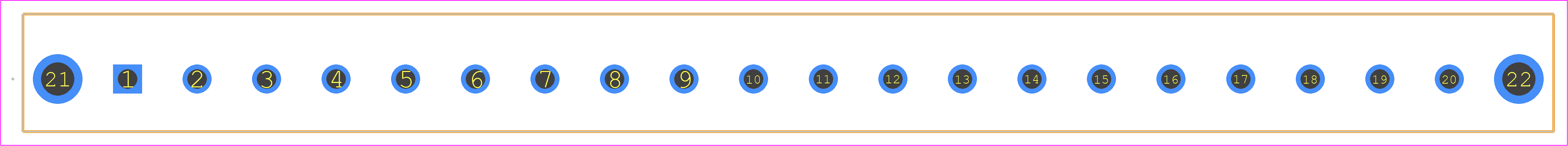

1777251 - Phoenix Contact PCB footprint - Other - Other - 1777251
click to zoom
3D Models
1777251 - Phoenix Contact - 3D model - Other - 1777251
click to zoom

1777251 Details

  • Manufacturer Part Number:

    1777251

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.75

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1777251 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.4 Nm to 0.6 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1777251 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1777251 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for use in harsh environments.
  • No, the 1777251 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's performance and reliability.
  • Yes, the 1777251 connector is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1777251 Overview

Use the download button to access the 1777251 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17772, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
