1777600 - Phoenix Contact

Description: MKDS 5N HV/ 8-ZB-6,35 - Printed circuit board terminal, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: MKDS 5 N HV, pitch: 6.35 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 5 mm, number of solder pins p

Download 1777600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1777600 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

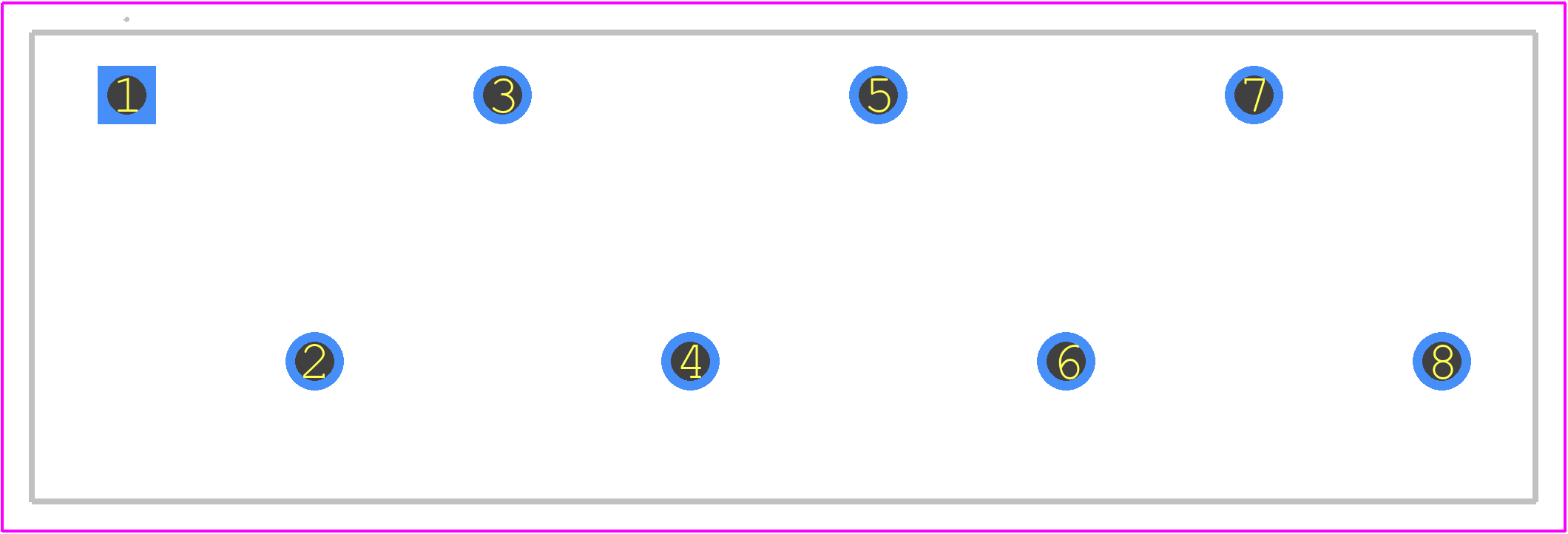

1777600 - Phoenix Contact PCB footprint - Other - Other - 1777600-2
click to zoom
3D Models
1777600 - Phoenix Contact - 3D model - Other - 1777600-2
click to zoom

1777600 Details

  • Manufacturer Part Number:

    1777600

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    41 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CUL; EAC; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    10 AWG
