178-015-413R571 - NorComp

Description: Norcomp 178 15 Way Right Angle Through Hole D-sub Connector Female/Male, 2.77mm Pitch, with 4-40 StandOffs/Board Lock

Download 178-015-413R571 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

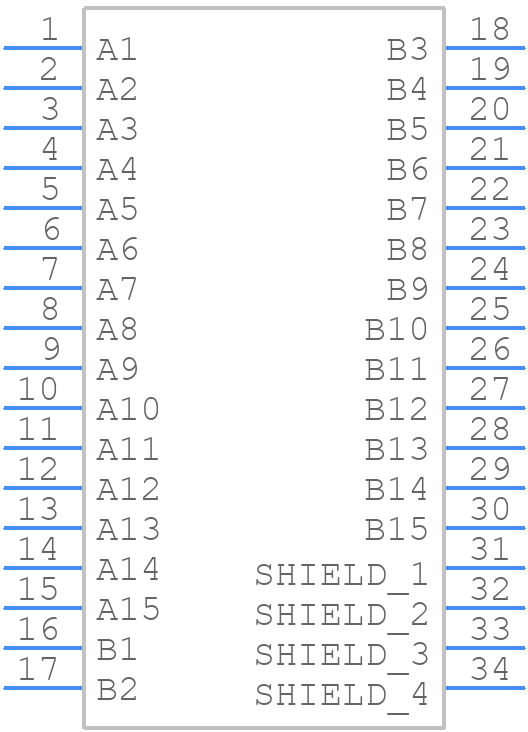

178-015-413R571 - NorComp - PCB symbol
click to zoom
PCB Footprints

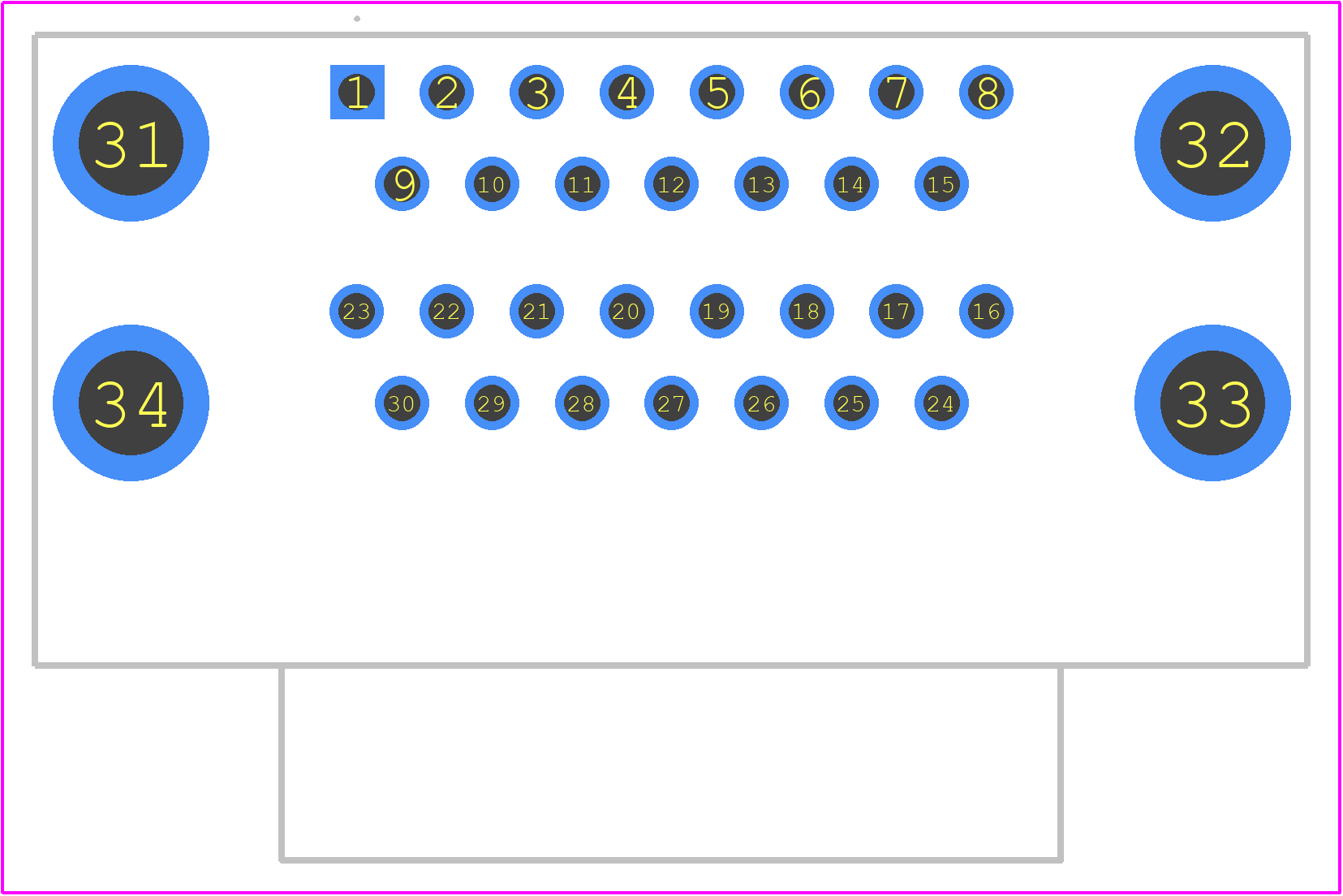

178-015-413R571 - NorComp PCB footprint - Other - Other - 178-015-413R571-3
click to zoom

178-015-413R571 Details

  • Manufacturer Part Number:

    178-015-413R571

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.18

  • Additional Feature:

    OTHER STACKING CONNECTOR: 15 CONTACTS; 2/A SHELL SIZE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE-FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE9T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

178-015-413R571 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the 178-015-413R571 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 178-015-413R571 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
  • The 178-015-413R571 has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • It's not recommended to use the 178-015-413R571 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

178-015-413R571 Overview

Use the download button to access the 178-015-413R571 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 178-0, or try a keyword search
