178-015-513R691 - NorComp

Description: 15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector 2 (DA, A) 5A -55°C ~ 105°C

Download 178-015-513R691 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

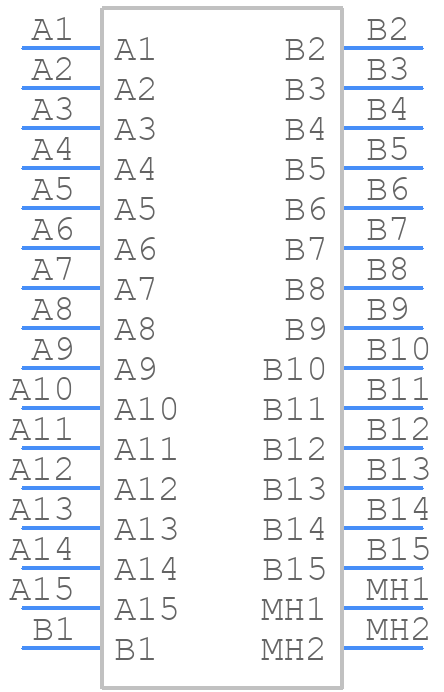

Symbol
178-015-513R691 - NorComp - PCB symbol
click to zoom

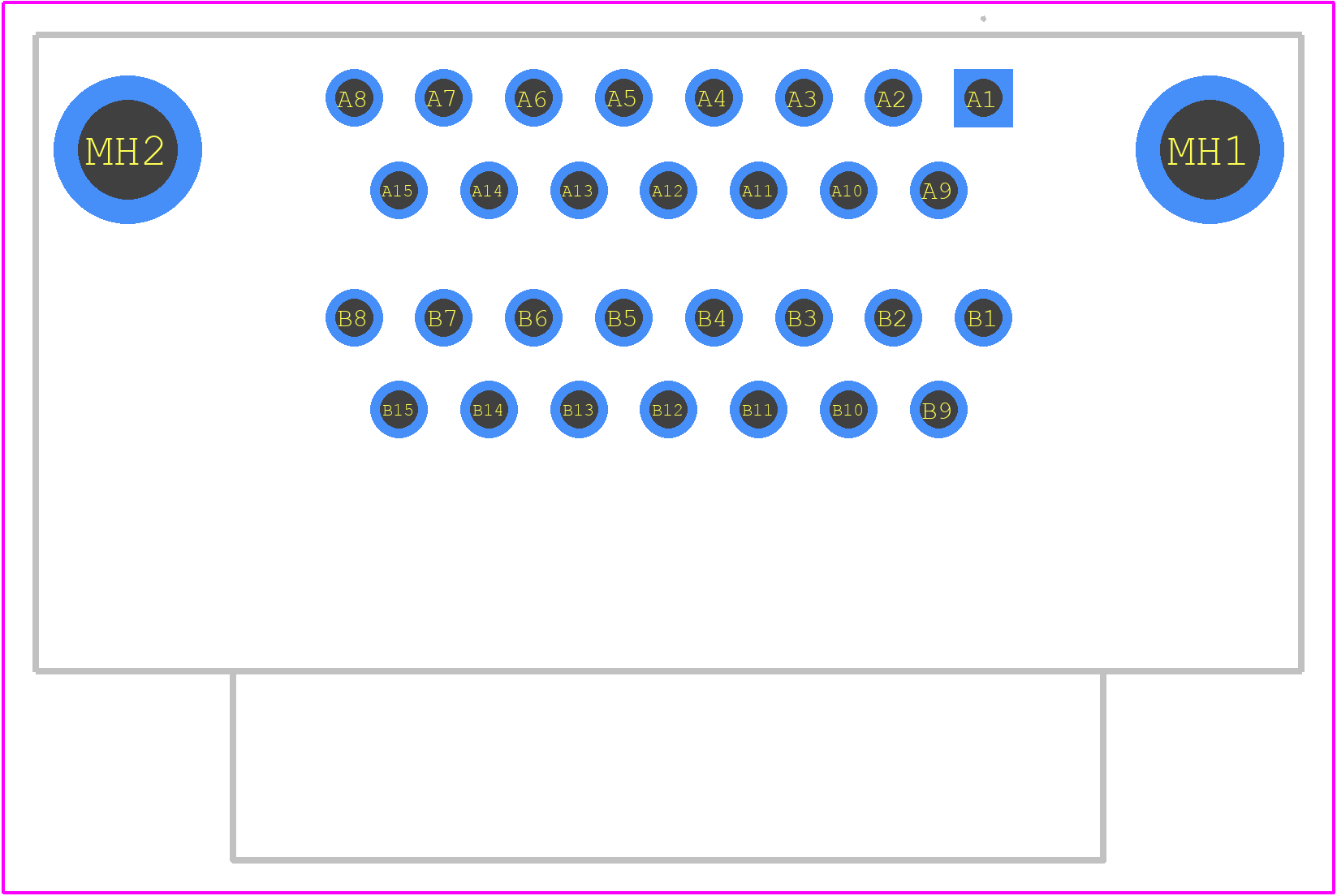

PCB Footprints
178-015-513R691 - NorComp PCB footprint - Other - Other - 178-015-513R691-2
click to zoom

178-015-513R691 Details

  • Manufacturer Part Number:

    178-015-513R691

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.18

  • Additional Feature:

    OTHER STACKING CONNECTOR: 15 CONTACTS; 2/A SHELL SIZE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE AND FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE9T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

178-015-513R691 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 178-015-513R691 is designed to withstand vibrations up to 10g (10-2000 Hz) and is suitable for use in high-vibration environments.
  • Yes, the connector is rated IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes, making it suitable for outdoor use.
  • The operating temperature range for the 178-015-513R691 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • While the datasheet specifies 24-18 AWG wire sizes, the connector can accommodate wire sizes from 20-16 AWG with the use of appropriate wire strippers and crimping tools.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

178-015-513R691 Overview

Use the download button to access the 178-015-513R691 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 178-0, or try a keyword search
