178-037-313R571 - NorComp

Description: 37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector

Download 178-037-313R571 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
178-037-313R571 - NorComp - PCB symbol
click to zoom
PCB Footprints

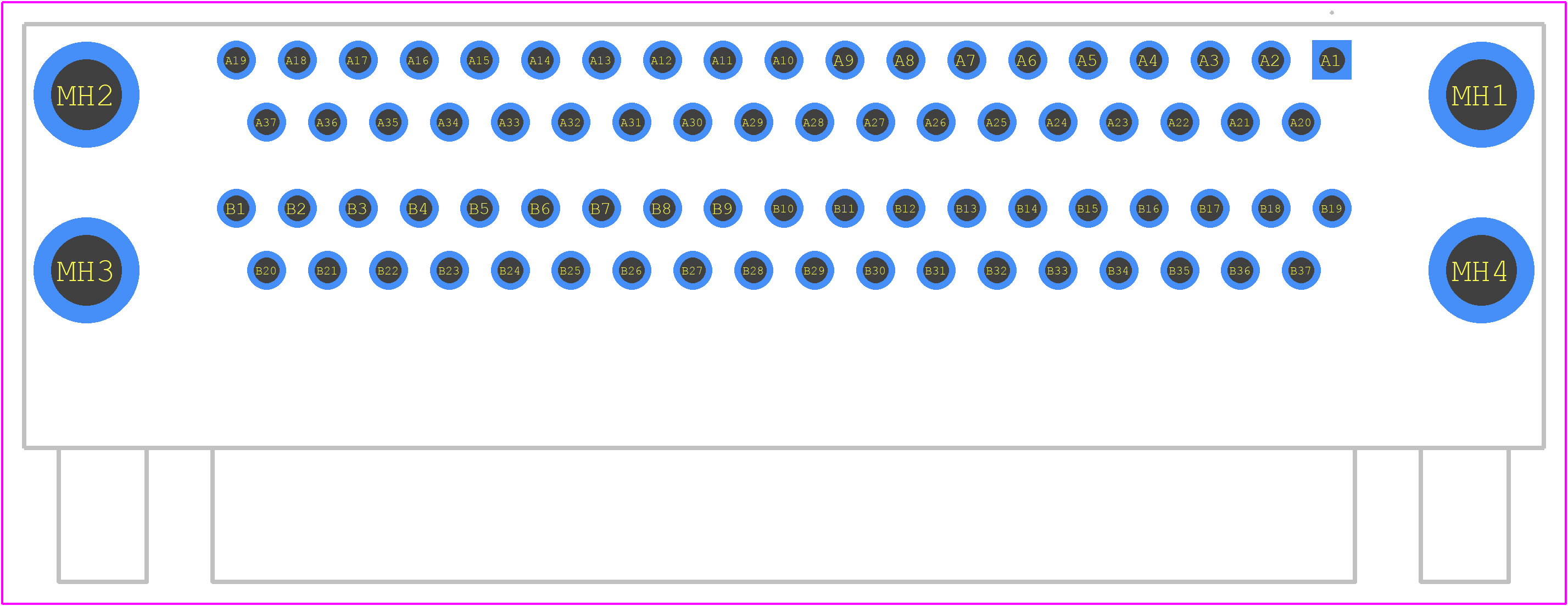

178-037-313R571 - NorComp PCB footprint - Other - Other - 178-037-313R571-1
click to zoom

178-037-313R571 Details

  • Manufacturer Part Number:

    178-037-313R571

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Additional Feature:

    OTHER STACKING CONNECTOR: 37 CONTACTS; 4/C SHELL SIZE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE AND MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE9T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

178-037-313R571 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the contacts are gold-plated with a minimum thickness of 0.76 microns (30 microinches) to ensure reliable connections and corrosion resistance.
  • The operating temperature range for the 178-037-313R571 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the 178-037-313R571 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
  • The 178-037-313R571 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
