1780480000 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 9, THT/THR solder connection, Box

Download 1780480000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1780480000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

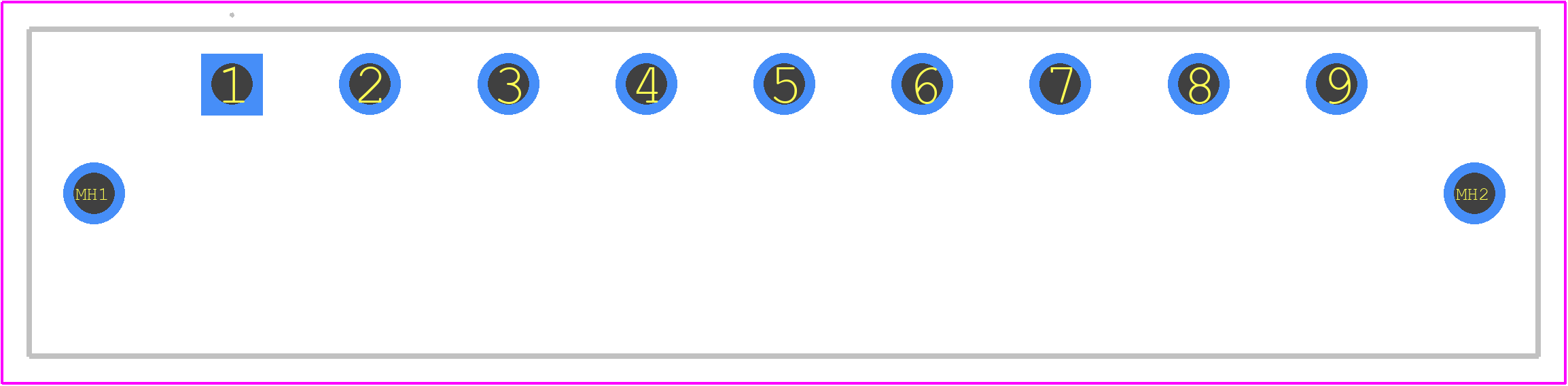

1780480000 - Weidmüller PCB footprint - Other - Other - 1780480000-2
click to zoom
3D Models
1780480000 - Weidmüller - 3D model - Other - 1780480000-2
click to zoom

1780480000 Details

  • Manufacturer Part Number:

    1780480000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
