1782404 - Phoenix Contact

Description: MC 1,5/ 7-G-3,81 P14 THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: MC 1,5/..-G-THR, pitch: 3.81 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin

Download 1782404 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1782404 - Phoenix Contact - PCB symbol
click to zoom

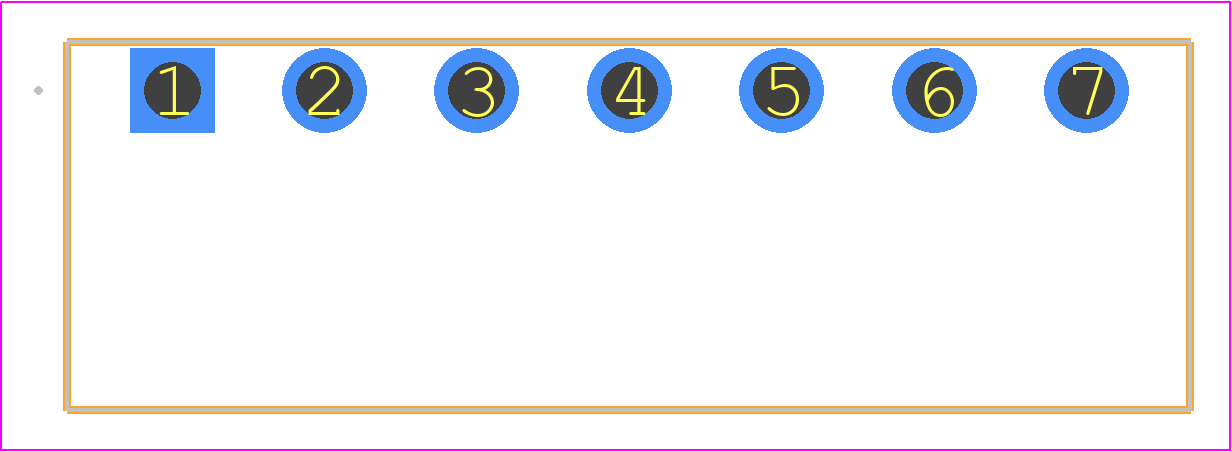

PCB Footprints
1782404 - Phoenix Contact PCB footprint - Other - Other - 1782404
click to zoom
3D Models
1782404 - Phoenix Contact - 3D model - Other - 1782404
click to zoom

1782404 Details

  • Manufacturer Part Number:

    1782404

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1782404 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 1782404 is designed to withstand high vibrations and is suitable for use in applications with intense vibrations, such as in industrial machinery or transportation systems.
  • The 1782404 has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's recommended to use additional protection measures, such as a waterproof enclosure, for extended outdoor use.
  • Yes, the 1782404 is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • The 1782404 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1782404 Overview

Use the download button to access the 1782404 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17824, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
