Part Image

178303-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 2 | Number of Positions 6 | PCB Mount Orientation Horizontal | Contact Features: Contact Type Pin | Contact Mating Area Plating Material Thickness .76 MICM | Contact Mating Area Plating Material Gold | Contact Current Rating (Max) 9.5 AMP | Contact Mating Area Plating Material Thickness 30 MICIN | Housing Features: Centerline (Pitch) .15 INCH | Centerline (Pitch) 3.81 MM | Housing Material Polyester GF | Industry Standards:

Download 178303-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
178303-3 - TE Connectivity - PCB symbol
click to zoom

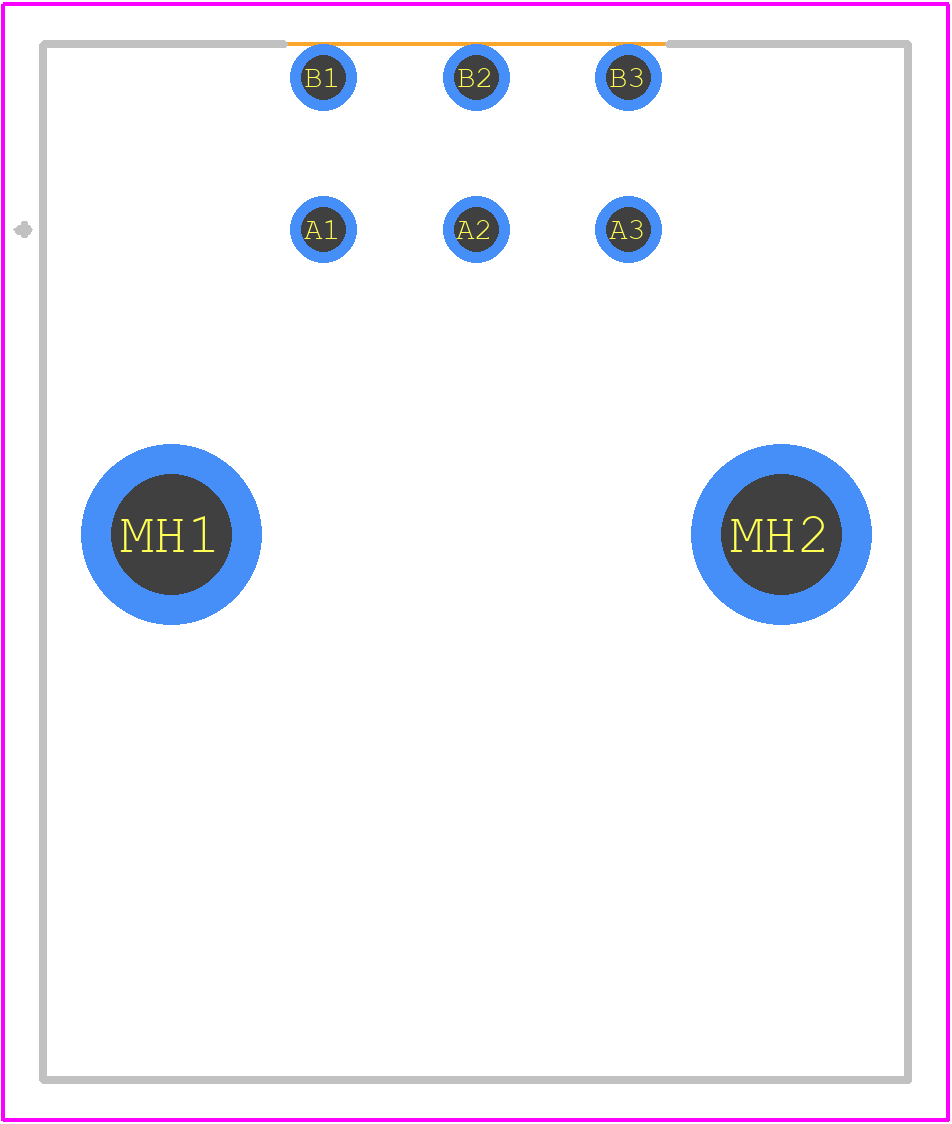

PCB Footprints
178303-3 - TE Connectivity PCB footprint - Other - Other - 178303-3-2
click to zoom
3D Models
178303-3 - TE Connectivity - 3D model - Other - 178303-3-2
click to zoom

178303-3 Details

  • Manufacturer Part Number:

    178303-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    9.5A

  • Mating Information:

    178289-3

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    9.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.81 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

178303-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 178303-3 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 178303-3 connector is -40°C to 125°C (-40°F to 257°F).
  • The 178303-3 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific environmental requirements of your application.
  • While the 178303-3 connector is designed for use with AWG 20-24 wire, it may be possible to use it with other wire sizes. However, it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific wire size requirements of your application.
