178306-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 12 | Number of Rows 2 | PCB Mount Orientation Horizontal | Contact Features: Contact Mating Area Plating Material Thickness .38 MICM | Contact Current Rating (Max) 15 AMP | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 15 MICIN | Contact Type Pin | Housing Features: Housing Material Polyester GF | Centerline (Pitch) .15 INCH | Centerline (Pitch) 3.81 MM | Industry Standards:

Download 178306-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
178306-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

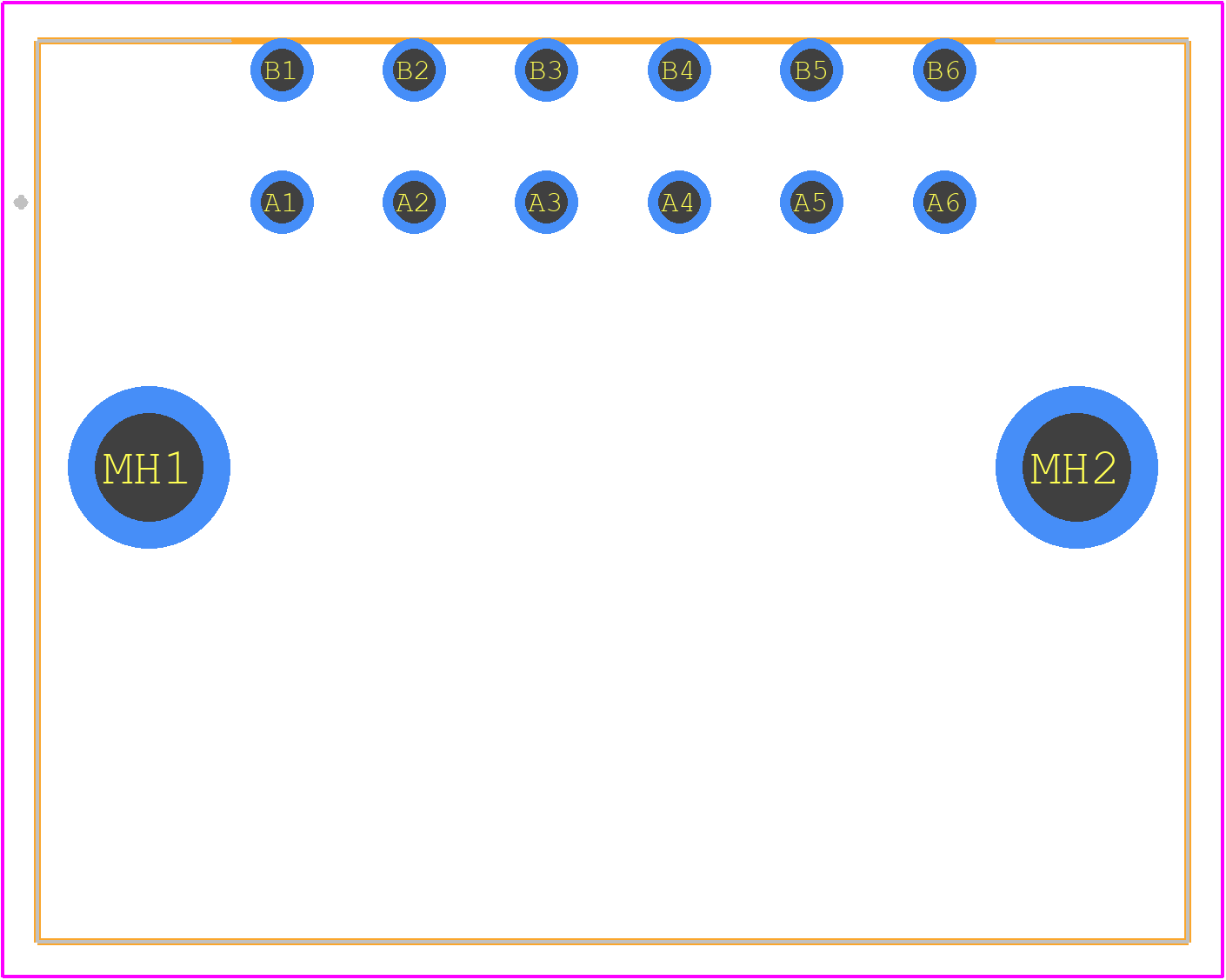

178306-2 - TE Connectivity PCB footprint - Other - Other - 178306-2-1
click to zoom
3D Models
178306-2 - TE Connectivity - 3D model - Other - 178306-2-1
click to zoom

178306-2 Details

  • Manufacturer Part Number:

    178306-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A

  • Mating Information:

    178289-6

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    15 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.81 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

178306-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 178306-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 178306-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines to ensure proper connector mating and to prevent damage. Consult the datasheet and application notes for specific guidance.
  • The 178306-2 connector is designed to operate in various environments, but it's crucial to consider the specific application and environmental conditions. Consult TE Connectivity's environmental testing data and application notes for more information.
