1786446 - Phoenix Contact

Description: IC 2,5/ 6-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: IC 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern ali

Download 1786446 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

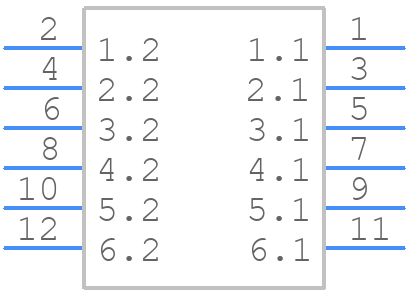

1786446 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

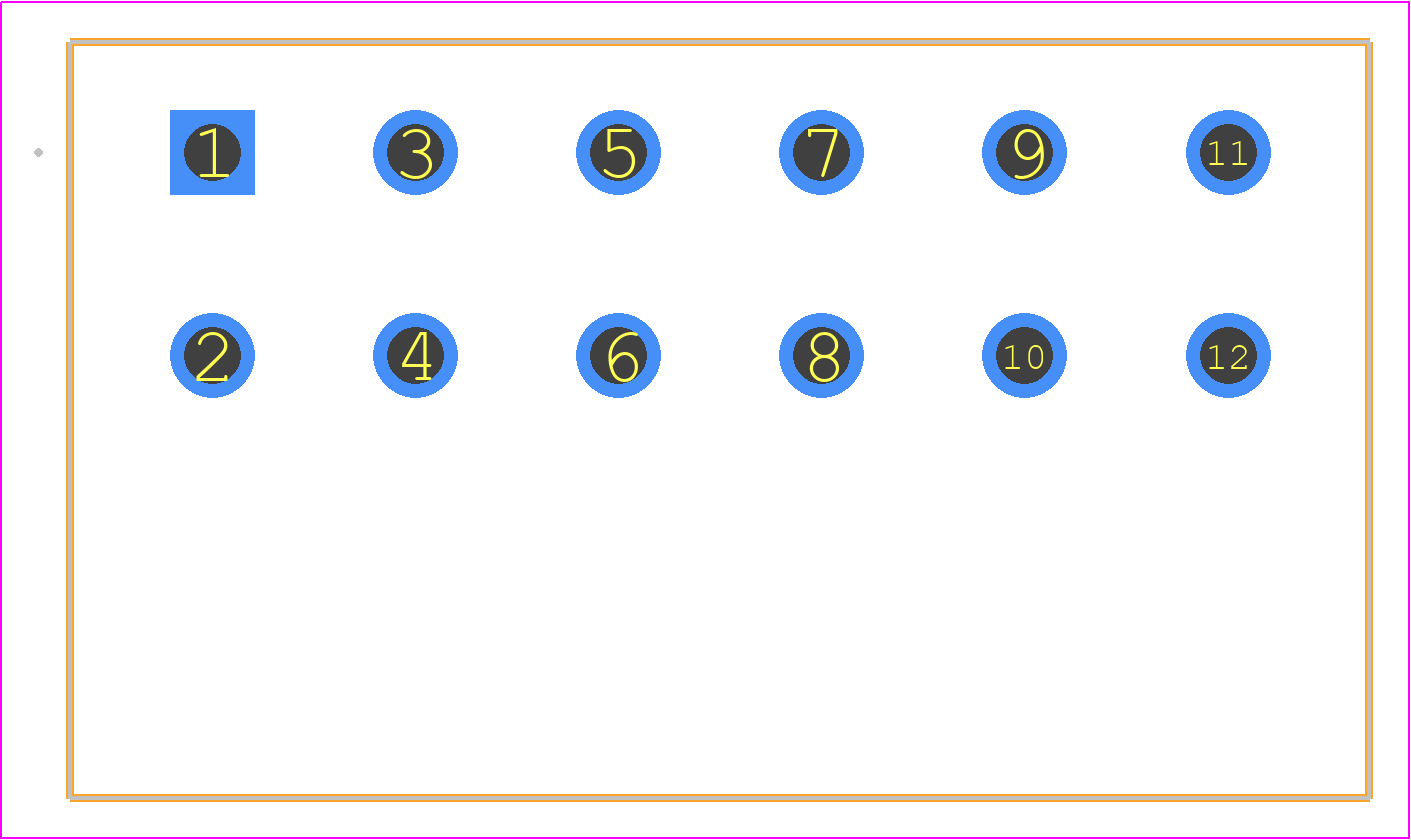

1786446 - Phoenix Contact PCB footprint - Other - Other - 1786446
click to zoom
3D Models
1786446 - Phoenix Contact - 3D model - Other - 1786446
click to zoom

1786446 Details

  • Manufacturer Part Number:

    1786446

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CCA; CSA; CUL; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786446 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • Yes, the 1786446 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1786446 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact's guidelines for specific environmental requirements.
  • Yes, the 1786446 connector is designed to be compatible with other Phoenix Contact products, including terminal blocks and PCB connectors, to provide a comprehensive connection solution.
  • The maximum current rating for the 1786446 connector is 12 A per pin, but it's essential to consult the datasheet and consider the specific application's requirements to ensure safe and reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1786446 Overview

Use the download button to access the 1786446 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17864, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
