1786491 - Phoenix Contact

Description: IC 2,5/11-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: IC 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern

Download 1786491 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

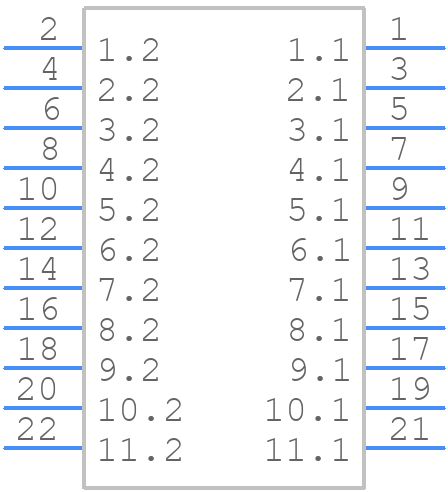

1786491 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

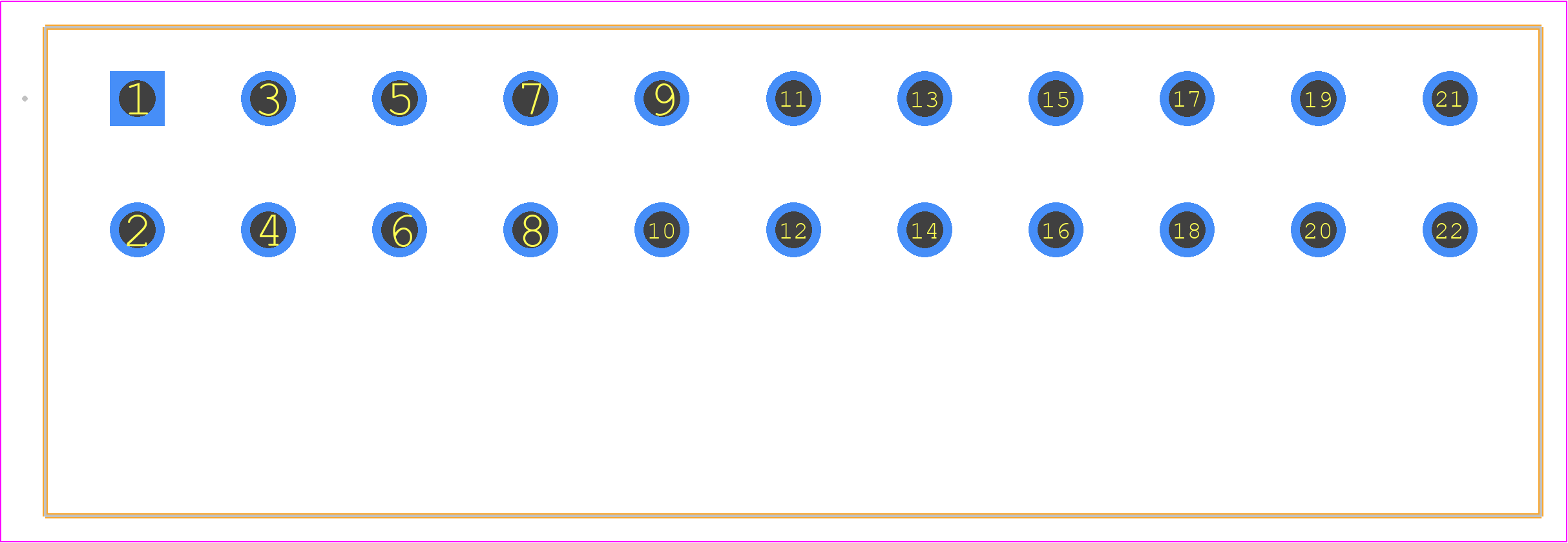

1786491 - Phoenix Contact PCB footprint - Other - Other - 1786491
click to zoom
3D Models
1786491 - Phoenix Contact - 3D model - Other - 1786491
click to zoom

1786491 Details

  • Manufacturer Part Number:

    1786491

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786491 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1786491 connector is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The connector is resistant to many common chemicals and cleaning agents, but it's recommended to check the compatibility of specific substances with the connector's materials.
  • The 1786491 connector has an IP67 rating, making it suitable for use in outdoor and wet environments, but it's essential to ensure proper sealing and installation.
  • The operating temperature range for the 1786491 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1786491 Overview

Use the download button to access the 1786491 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17864, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
