1786866 - Phoenix Contact

Description: DMC 1,5/ 5-G1-3,5 P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 2, number of positions: 5, number of connections: 10, product range: DMC 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,5,

Download 1786866 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1786866 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

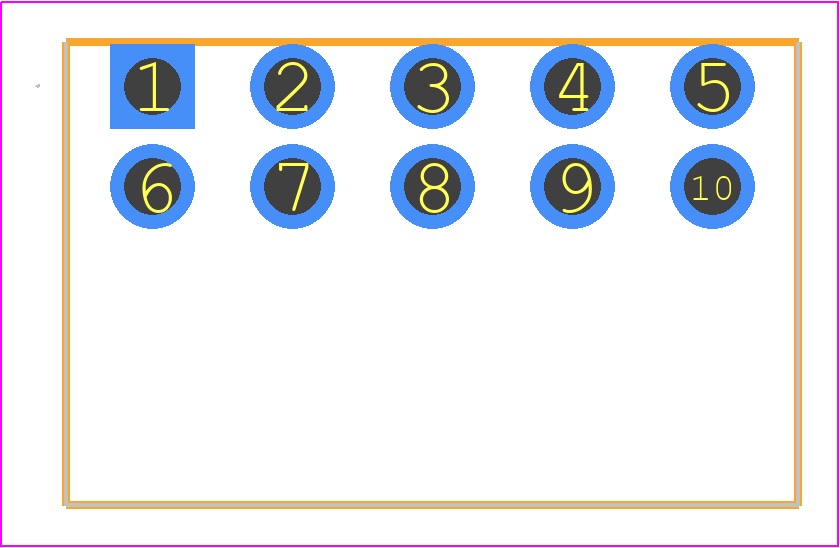

1786866 - Phoenix Contact PCB footprint - Other - Other - 1786866
click to zoom
3D Models
1786866 - Phoenix Contact - 3D model - Other - 1786866
click to zoom

1786866 Details

  • Manufacturer Part Number:

    1786866

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786866 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and assembly guidelines for precise torque values.
  • While the 1786866 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional locking mechanisms or specialized vibration-resistant designs.
  • To ensure reliable connections in humid or wet environments, apply a thin layer of silicone-based lubricant to the contacts, and consider using connectors with IP67 or higher ingress protection ratings.
  • The 1786866 connector is rated for operation between -40°C and 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1786866 connector is rated for currents up to 12 A per contact. For higher current applications, consider using connectors with heavier gauge wires or specialized high-current designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1786866 Overview

Use the download button to access the 1786866 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17868, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
