1786882 - Phoenix Contact

Description: DMC 1,5/ 7-G1-3,5 P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 14, number of rows: 2, number of positions: 7, number of connections: 14, product range: DMC 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,5,

Download 1786882 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1786882 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

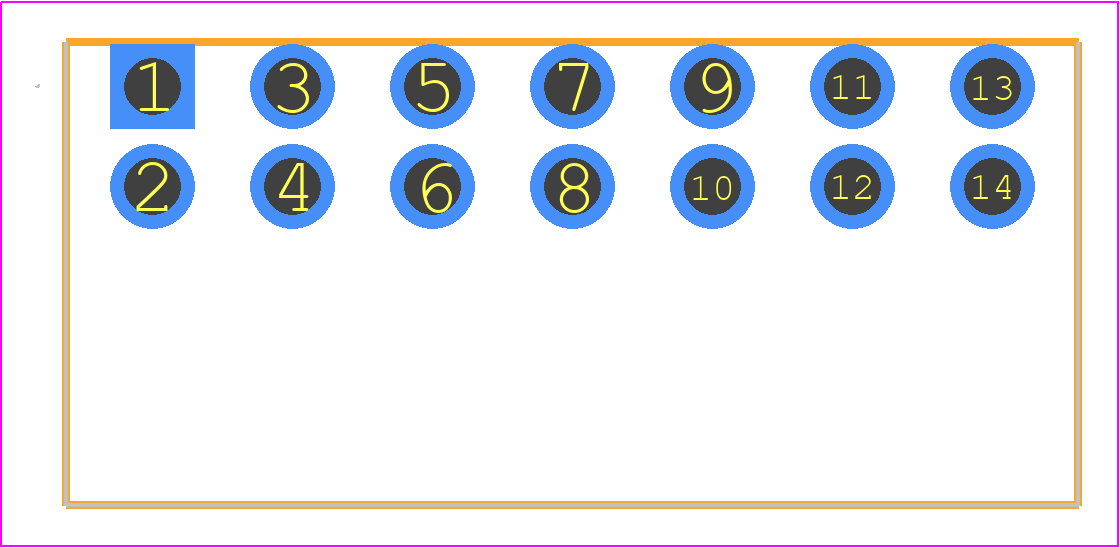

1786882 - Phoenix Contact PCB footprint - Other - Other - 1786882
click to zoom
3D Models
1786882 - Phoenix Contact - 3D model - Other - 1786882
click to zoom

1786882 Details

  • Manufacturer Part Number:

    1786882

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    14

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786882 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1786882 is -40°C to 125°C.
  • Yes, the 1786882 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • The 1786882 is not certified for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1786882 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1786882 is compliant with both RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
