1786950 - Phoenix Contact

Description: DMC 1,5/14-G1-3,5 P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 28, number of rows: 2, number of positions: 14, number of connections: 28, product range: DMC 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,5,

Download 1786950 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

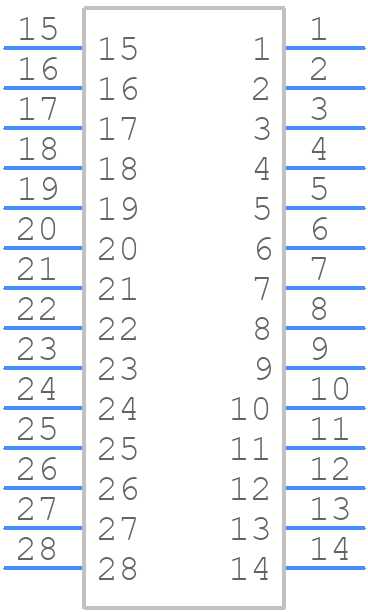

1786950 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

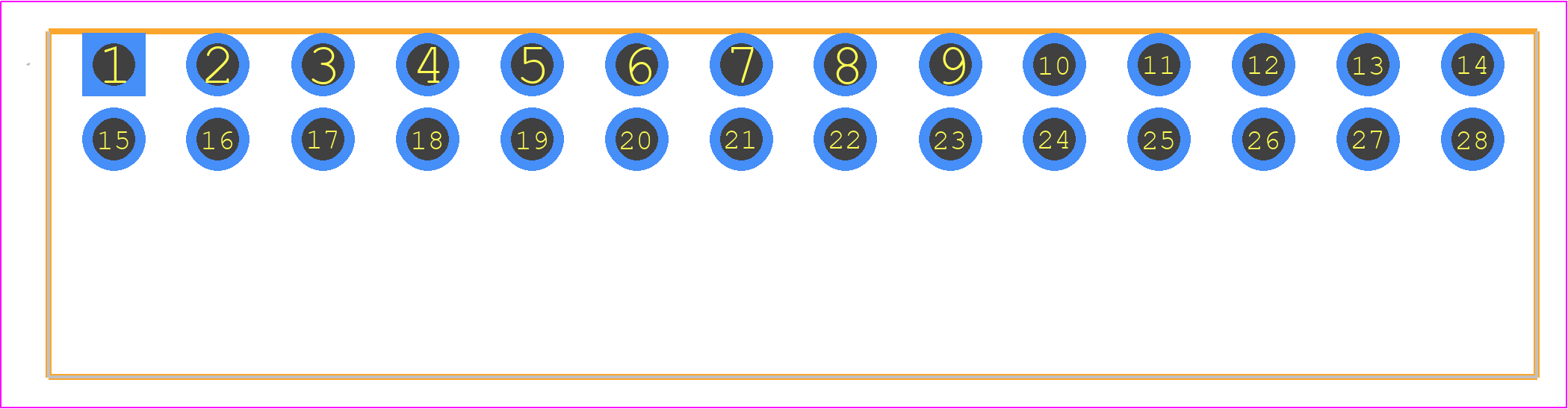

1786950 - Phoenix Contact PCB footprint - Other - Other - 1786950
click to zoom
3D Models
1786950 - Phoenix Contact - 3D model - Other - 1786950
click to zoom

1786950 Details

  • Manufacturer Part Number:

    1786950

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1786950 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1786950 is -40°C to 125°C.
  • Yes, the 1786950 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1786950 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1786950 is 2.5 mm² (AWG 14).
  • Yes, the 1786950 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
