Part Image

1787056 - Phoenix Contact

Description: DMC 1,5/ 6-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 2, number of positions: 6, number of connections: 12, product range: DMC 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC

Download 1787056 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1787056 - Phoenix Contact - PCB symbol
click to zoom

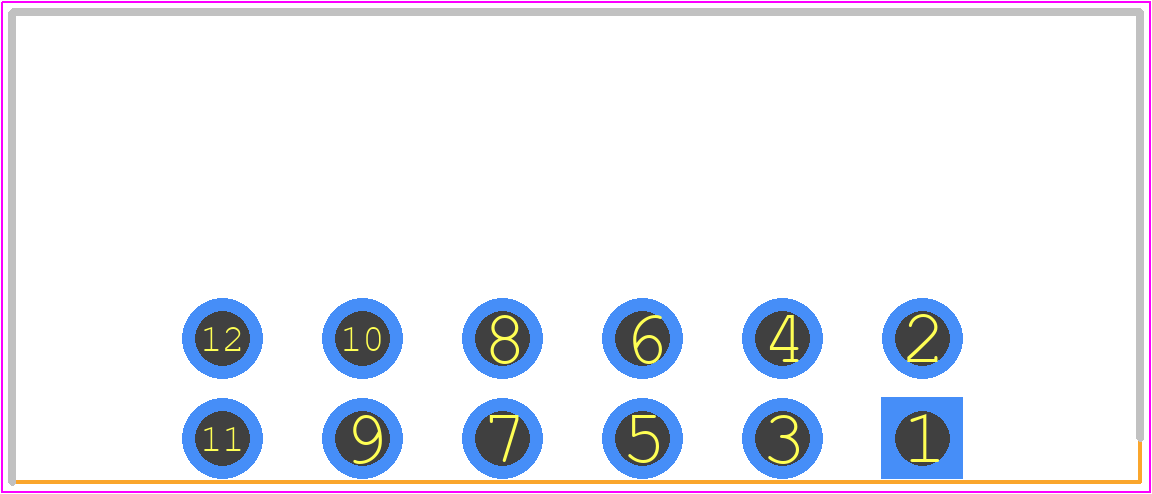

PCB Footprints
1787056 - Phoenix Contact PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 1787056
click to zoom
3D Models
1787056 - Phoenix Contact - 3D model - Header, Shrouded - Right Angle PTH Box - 1787056
click to zoom

1787056 Details

  • Manufacturer Part Number:

    1787056

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1787056 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and Phoenix Contact's application notes for precise guidance.
  • Yes, the 1787056 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1787056 connector is rated for operating temperatures between -40°C and 125°C and can withstand humid environments. However, it's essential to consult Phoenix Contact's environmental specifications and application notes for specific guidance.
  • Yes, the 1787056 connector is designed to be compatible with other Phoenix Contact products. However, it's essential to verify compatibility and consult Phoenix Contact's documentation for specific guidance.
  • The maximum current rating for the 1787056 connector is 12 A per contact. However, it's essential to consult the specific application and Phoenix Contact's documentation for precise guidance on current ratings and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1787056 Overview

Use the download button to access the 1787056 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17870, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
