1787179 - Phoenix Contact

Description: DMC 1,5/18-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 36, number of rows: 2, number of positions: 18, number of connections: 36, product range: DMC 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC

Download 1787179 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

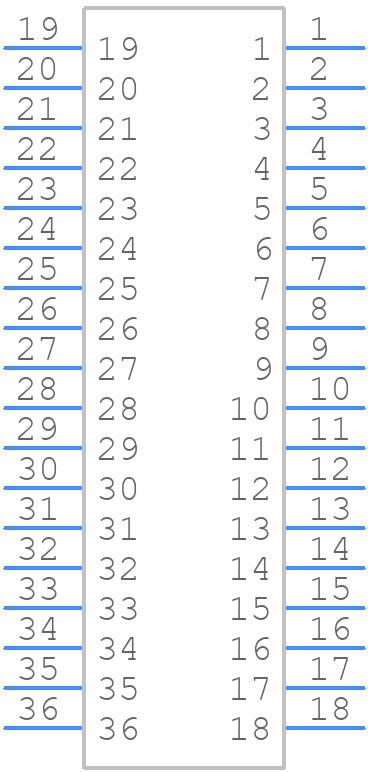

1787179 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

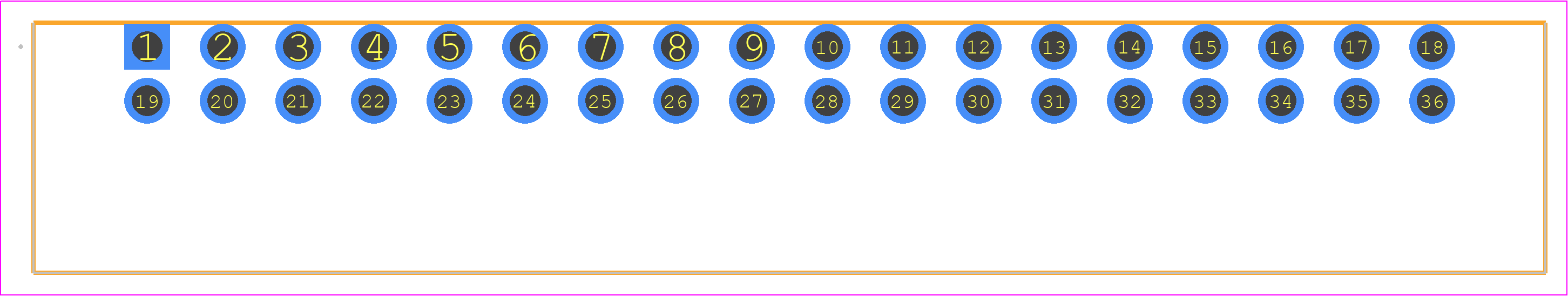

1787179 - Phoenix Contact PCB footprint - Other - Other - 1787179
click to zoom
3D Models
1787179 - Phoenix Contact - 3D model - Other - 1787179
click to zoom

1787179 Details

  • Manufacturer Part Number:

    1787179

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1787179 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or connector.
  • Yes, the 1787179 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain reliability in high-vibration environments.
  • The 1787179 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humid environments. However, it's essential to consult the specific application requirements and ensure proper sealing and protection to maintain reliability.
  • Yes, the 1787179 connector is designed to be compatible with other Phoenix Contact products and accessories, such as cables, adapters, and connectors. Consult the Phoenix Contact catalog or website for compatible products and configurations.
  • The maximum current rating for the 1787179 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure proper wire sizing and insulation to maintain reliability and safety.
