1787483 - Phoenix Contact

Description: DMCV 1,5/11-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 22, number of rows: 2, number of positions: 11, number of connections: 22, product range: DMCV 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DF

Download 1787483 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

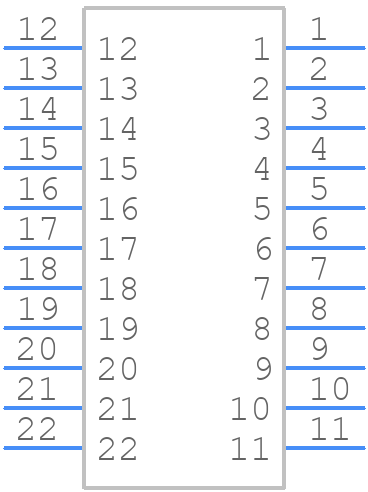

1787483 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

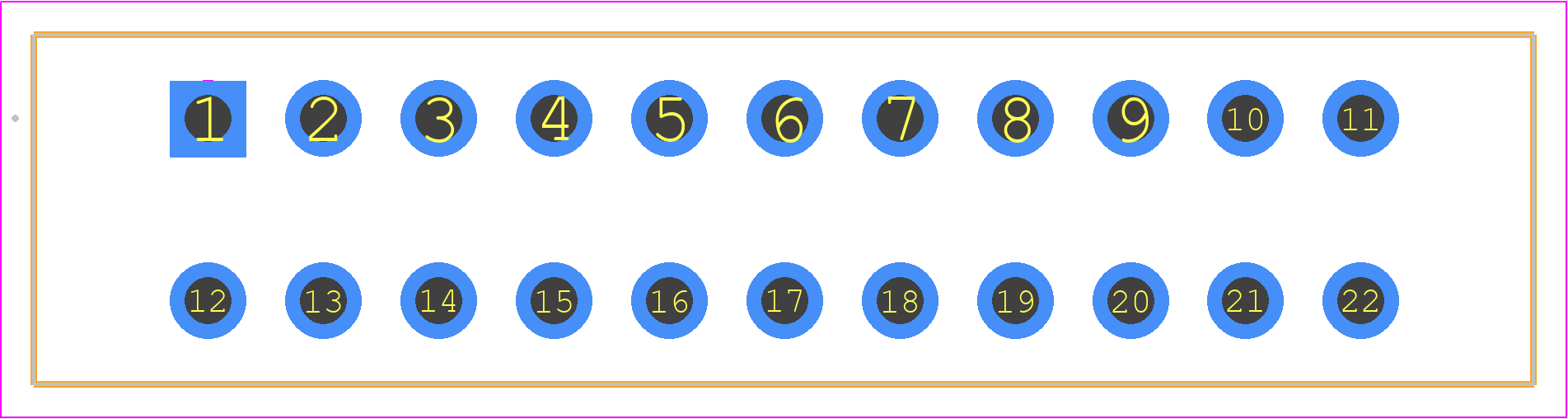

1787483 - Phoenix Contact PCB footprint - Other - Other - 1787483
click to zoom
3D Models
1787483 - Phoenix Contact - 3D model - Other - 1787483
click to zoom

1787483 Details

  • Manufacturer Part Number:

    1787483

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    11

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1787483 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for harsh environments.
  • The maximum current rating is 12 A per contact, depending on the wire size and application.
  • Yes, the contacts are gold-plated with a minimum thickness of 0.5 μm to ensure reliable connections and corrosion resistance.
