1787496 - Phoenix Contact

Description: DMCV 1,5/12-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 24, number of rows: 2, number of positions: 12, number of connections: 24, product range: DMCV 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DF

Download 1787496 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

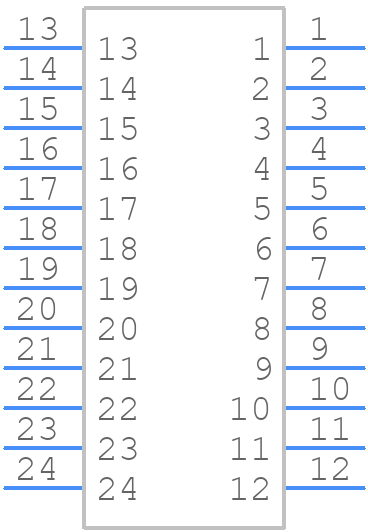

1787496 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

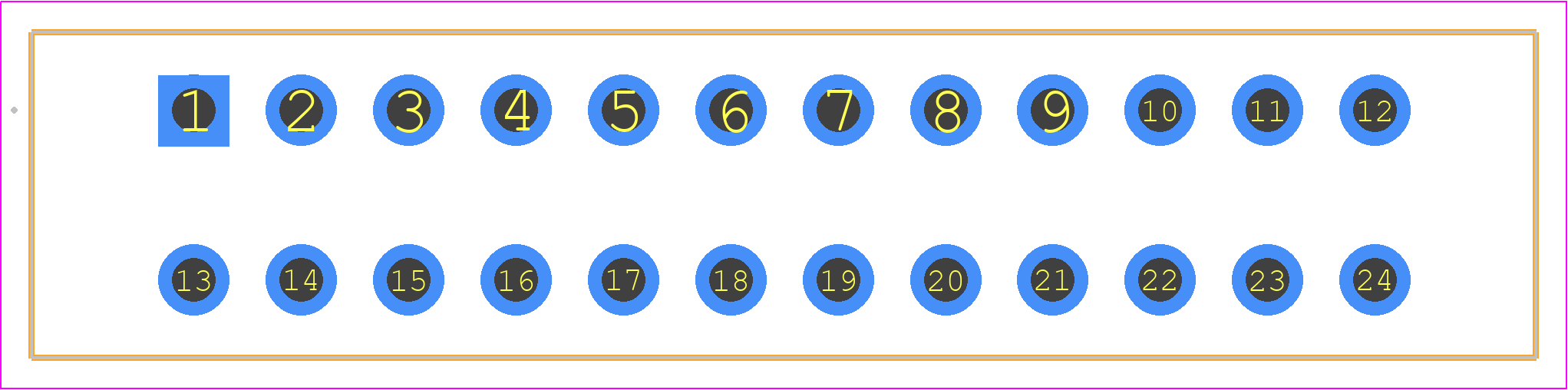

1787496 - Phoenix Contact PCB footprint - Other - Other - 1787496
click to zoom
3D Models
1787496 - Phoenix Contact - 3D model - Other - 1787496
click to zoom

1787496 Details

  • Manufacturer Part Number:

    1787496

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1787496 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific application and Phoenix Contact's guidelines for precise torque values.
  • Yes, the 1787496 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure connections to maintain reliability.
  • The 1787496 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to consider additional protection measures, such as sealing or conformal coating, depending on the specific application.
  • The 1787496 connector is designed to be compatible with other Phoenix Contact products. However, when using third-party components, ensure compatibility and consult the manufacturer's guidelines to avoid any potential issues.
  • The 1787496 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consider the specific application and potential temperature fluctuations to ensure reliable operation.
