1787577 - Phoenix Contact

Description: DMCV 1,5/20-G1F-3,5-LR P20THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 40, number of rows: 2, number of positions: 20, number of connections: 40, product range: DMCV 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DF

Download 1787577 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

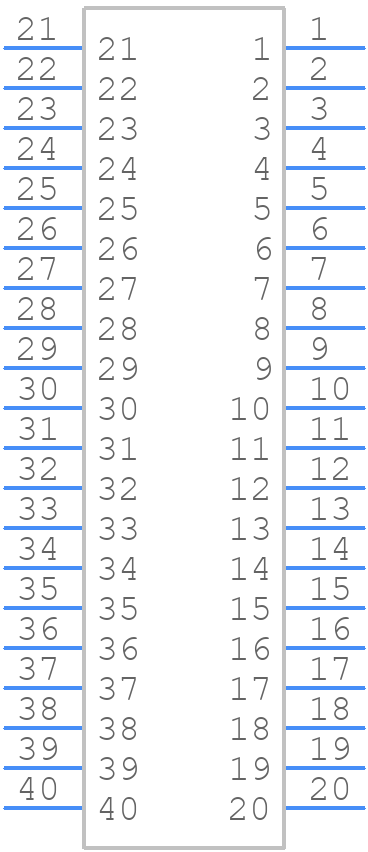

1787577 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

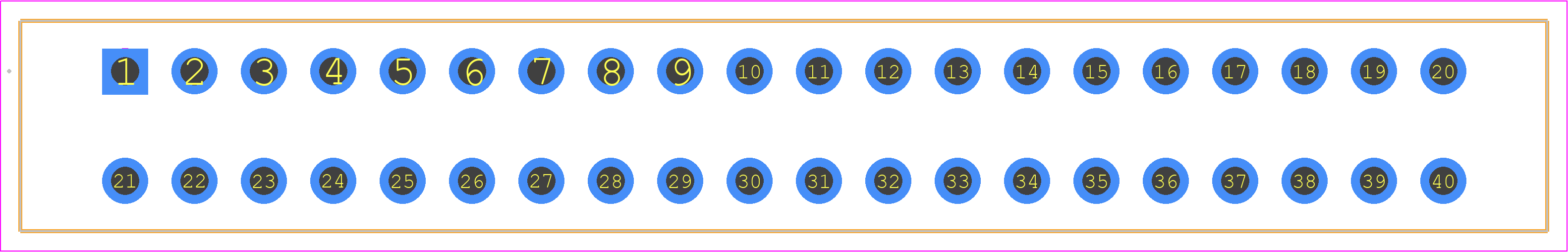

1787577 - Phoenix Contact PCB footprint - Other - Other - 1787577
click to zoom
3D Models
1787577 - Phoenix Contact - 3D model - Other - 1787577
click to zoom

1787577 Details

  • Manufacturer Part Number:

    1787577

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1787577 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1787577 is -40°C to 125°C.
  • Yes, the 1787577 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1787577 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1787577 is 2.5 mm² (AWG 14).
  • Yes, the 1787577 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1787577 Overview

Use the download button to access the 1787577 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17875, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
