178762-1 - TE Connectivity

Description: Body Features: Primary Product Color White | Configuration Features: Number of Positions 26 | PCB Mount Orientation Horizontal | Number of Signal Positions 26 | Number of Rows 2 | Number of Sections 1 | Contact Features: Mating Tab Width 1.8 MM | Contact Size 1mm | Mating Tab Thickness .025 INCH | Mating Tab Width 1 MM | Mating Tab Thickness .64 MM | Contact Mating Area Plating Material Tin | Contact Size 1.8mm | Mating Tab Width .039 INCH | Contact Type Tab | Mating Tab Width .071 INCH | Dimensions: PCB Th

Download 178762-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
178762-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

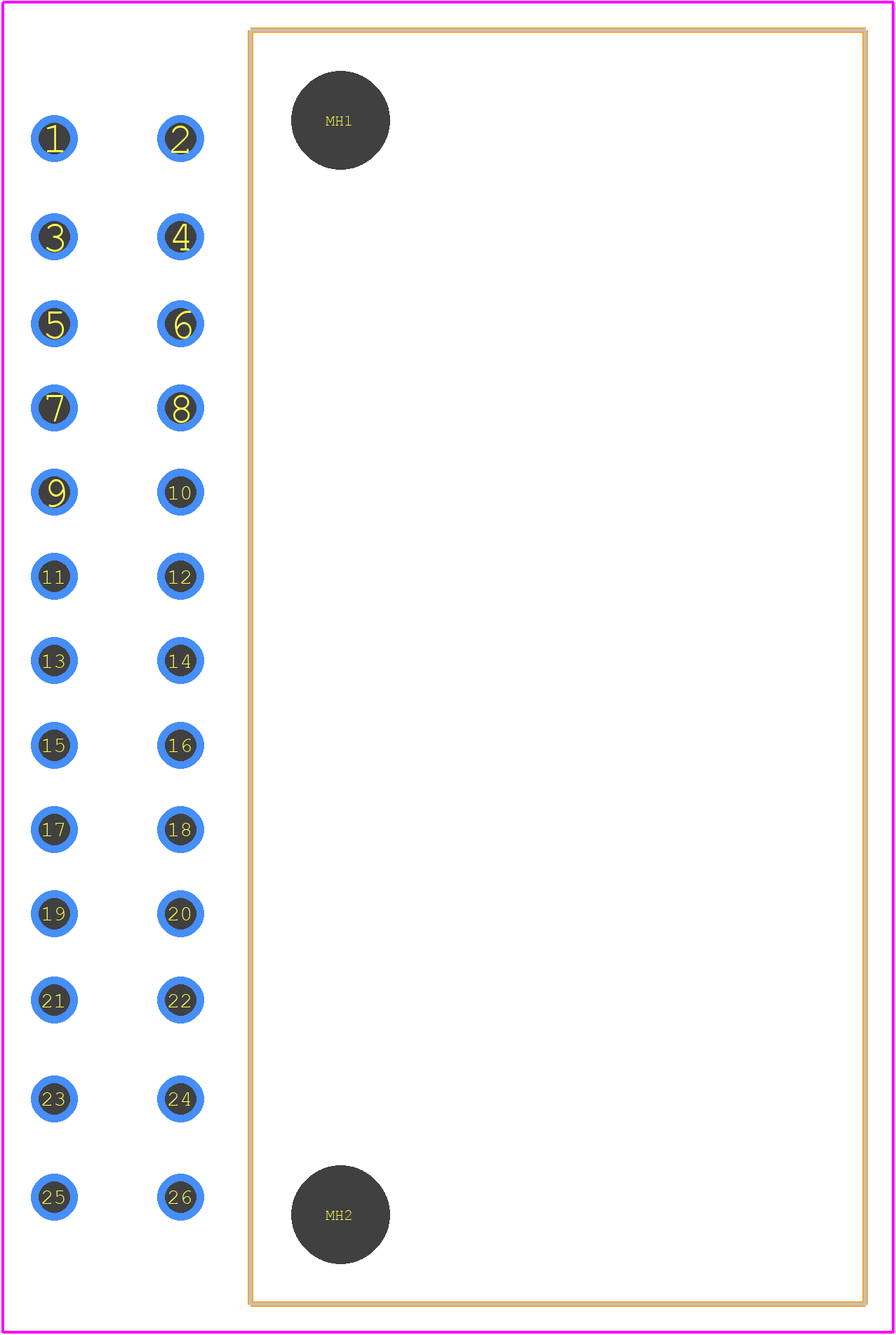

178762-1 - TE Connectivity PCB footprint - Other - Other - 178762-1-2
click to zoom
3D Models
178762-1 - TE Connectivity - 3D model - Other - 178762-1-2
click to zoom

178762-1 Details

  • Manufacturer Part Number:

    178762-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.787 inch

  • Body Depth:

    0.728 inch

  • Body Length:

    1.016 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94-HB

178762-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 178762-1 connector.
  • Yes, the 178762-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
  • The 178762-1 connector has a plastic housing that is resistant to many chemicals, but it's recommended to consult TE Connectivity's chemical resistance chart to ensure compatibility with specific chemicals.
  • The 178762-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • The 178762-1 connector is rated for up to 13A per contact, making it suitable for moderate to high-current applications. However, it's essential to consult the datasheet and perform thermal derating calculations to ensure safe operation.
