Part Image

178780-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 76 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Housing Features: Centerline (Pitch) .118 INCH | Centerline (Pitch) 3 MM | Centerline (Pitch) .137 INCH | Centerline (Pitch) 3.5 MM | Mechanical Attachment: Connector Mounting Type Board Mount | PCB Mount Alignment With | PCB Mount Retention Without | Mating Alignment With |

Download 178780-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
178780-1 - TE Connectivity - PCB symbol
click to zoom

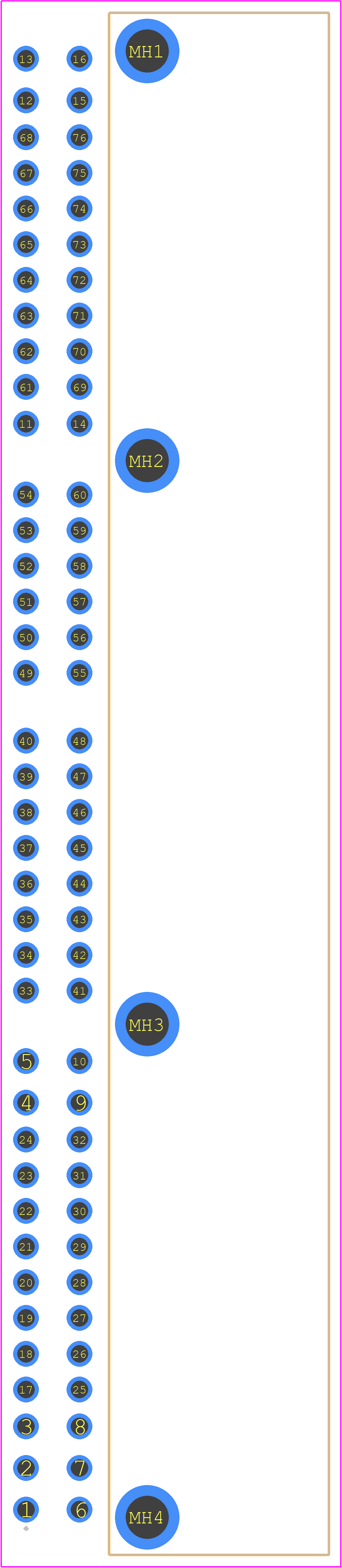

PCB Footprints
178780-1 - TE Connectivity PCB footprint - Other - Other - 178780-1-2
click to zoom
3D Models
178780-1 - TE Connectivity - 3D model - Other - 178780-1-2
click to zoom

178780-1 Details

  • Manufacturer Part Number:

    178780-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.862 inch

  • Body Depth:

    0.728 inch

  • Body Length:

    5.106 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    76

178780-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 178780-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 178780-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 178780-1 connector has a sealed construction, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure the connector is properly sealed and protected from moisture and contaminants.
  • Yes, the 178780-1 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

178780-1 Overview

Use the download button to access the 178780-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17878, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
