178780-9 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

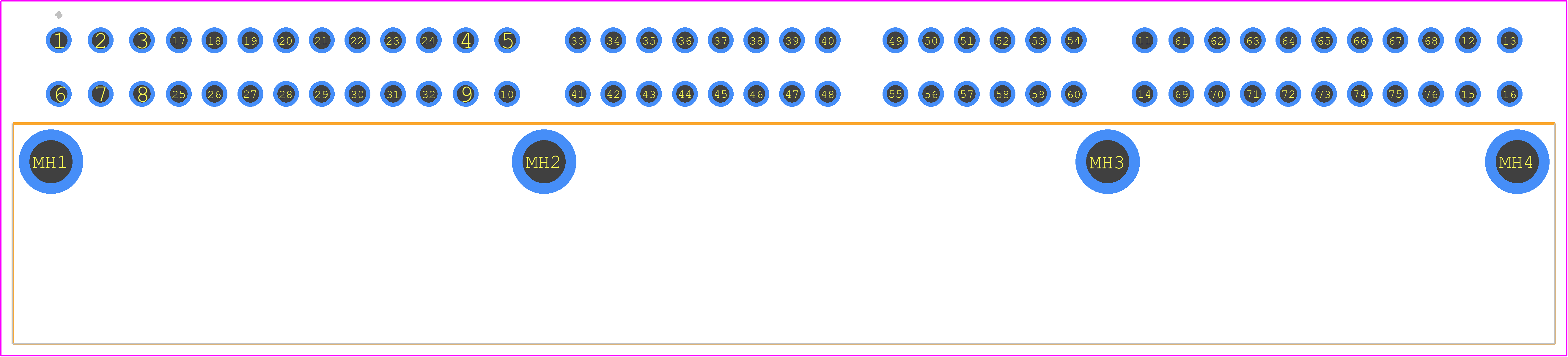

PCB Footprints

178780-9 - TE Connectivity PCB footprint - Other - Other - 178780-9-2

click to zoom

3D Models

178780-9 - TE Connectivity - 3D model - Other - 178780-9-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 178780-9
Part Number 178780-9
Manufacturer TE Connectivity
Pin Count 80
Part Category Connector
Package Category Other
Footprint Name Other - 178780-9-2
Released Date Apr 7, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

178780-9 Details

Manufacturer Part Number:
178780-9
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
3
Body Breadth:
5.106 inch
Body Depth:
0.728 inch
Body Length:
1.016 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Reference Standard:
UL
Terminal Pitch:
3 mm
Termination Type:
SOLDER
Total Number of Contacts:
76
UL Flammability Code:
94-HB

178780-9 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 178780-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
The 178780-9 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
Yes, it's recommended to clean the connector contacts regularly to ensure reliable connections. Use a soft brush and a mild cleaning solution to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that can damage the connector.

Trust Checks

Expert Contribution

System Verified

Community Approved

178780-9 Overview

Use the download button to access the 178780-9 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 17878, or try a keyword search, such as Combination Line Connectors
