1789472 - Phoenix Contact

Description: FFKDSA1/V-2,54- 8 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: FFKDS(A) 0,5/..-V, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging:

Download 1789472 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1789472 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

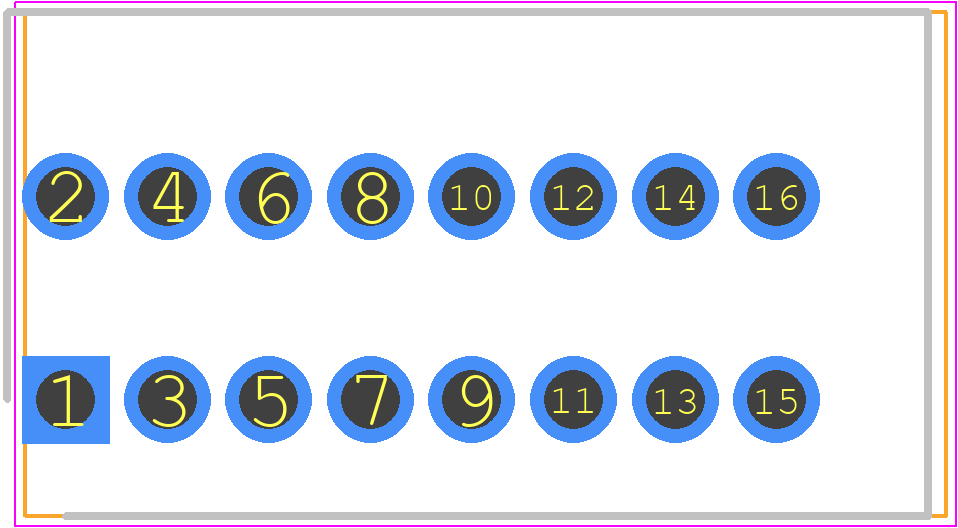

1789472 - Phoenix Contact PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1789472
click to zoom
3D Models
1789472 - Phoenix Contact - 3D model - Header, Shrouded - Straight PTH Box - 1789472
click to zoom

1789472 Details

  • Manufacturer Part Number:

    1789472

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94 V0, PA

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1789472 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1789472 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1789472 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1789472 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1789472 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1789472 is typically used in industrial automation, machine building, and electrical engineering applications, where reliable and secure connections are required.
