1789485 - Phoenix Contact

Description: FFKDSA1/V-2,54- 7 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: FFKDS(A) 0,5/..-V, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging:

Download 1789485 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

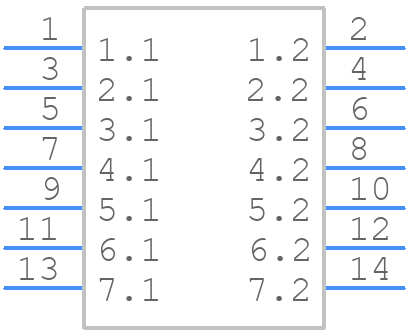

1789485 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

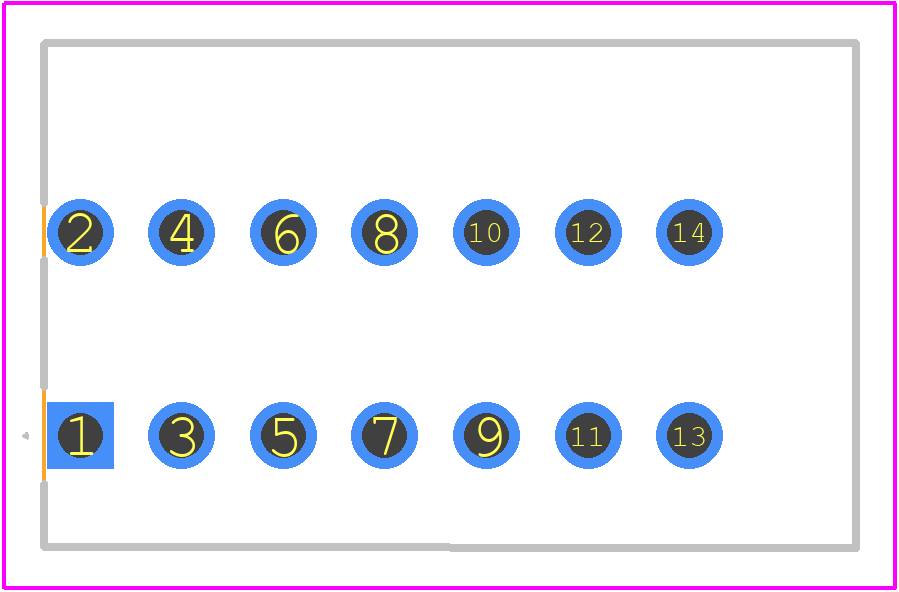

1789485 - Phoenix Contact PCB footprint - Other - Other - 1789485
click to zoom
3D Models
1789485 - Phoenix Contact - 3D model - Other - 1789485
click to zoom

1789485 Details

  • Manufacturer Part Number:

    1789485

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1789485 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1789485 is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial machinery or transportation systems.
  • The 1789485 has a high level of resistance to chemicals and corrosive substances, including oil, fuel, and saltwater. However, it's essential to check the specific chemical resistance for your application.
  • The 1789485 has an IP67 rating, which means it's protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not suitable for continuous underwater use or exposure to high-pressure washdowns.
  • The 1789485 can operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1789485 Overview

Use the download button to access the 1789485 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17894, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
