179059-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Rows 2 | Number of Positions 36 | Number of Signal Positions 36 | PCB Mount Orientation Horizontal | Number of Sections 2 | Contact Features: Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Thickness .025 INCH | Mating Tab Width .039 INCH | Contact Size 1mm | Mating Tab Width 1 MM | Mating Tab Thickness .64 MM | Dimensions: Profile Height from PCB 16.9 MM | PCB Thickness (Recommended) .063 INCH | Connector

Download 179059-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
179059-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

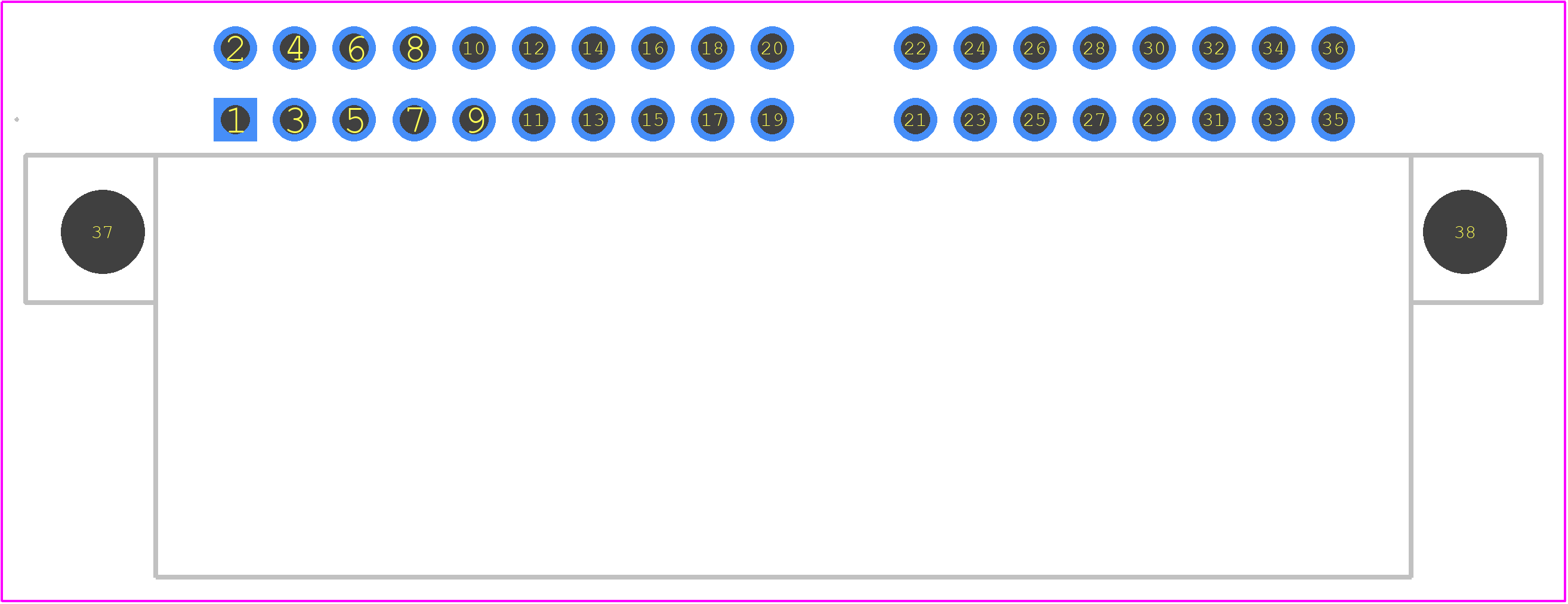

179059-6 - TE Connectivity PCB footprint - Other - Other - 179059-6-3
click to zoom
3D Models
179059-6 - TE Connectivity - 3D model - Other - 179059-6-3
click to zoom

179059-6 Details

  • Manufacturer Part Number:

    179059-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    2.5 inch

  • Body Length:

    0.886 inch

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER
