1793587 - Phoenix Contact

Description: IPCV 35 HC/ 5-GF-15,00 - PCB headers, nominal cross section: 35 mm<sup>2</sup>, color: green, nominal current: 125 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: IPCV 35 HC/..-GF, pitch: 15 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 35, Pin connector patt

Download 1793587 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1793587 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

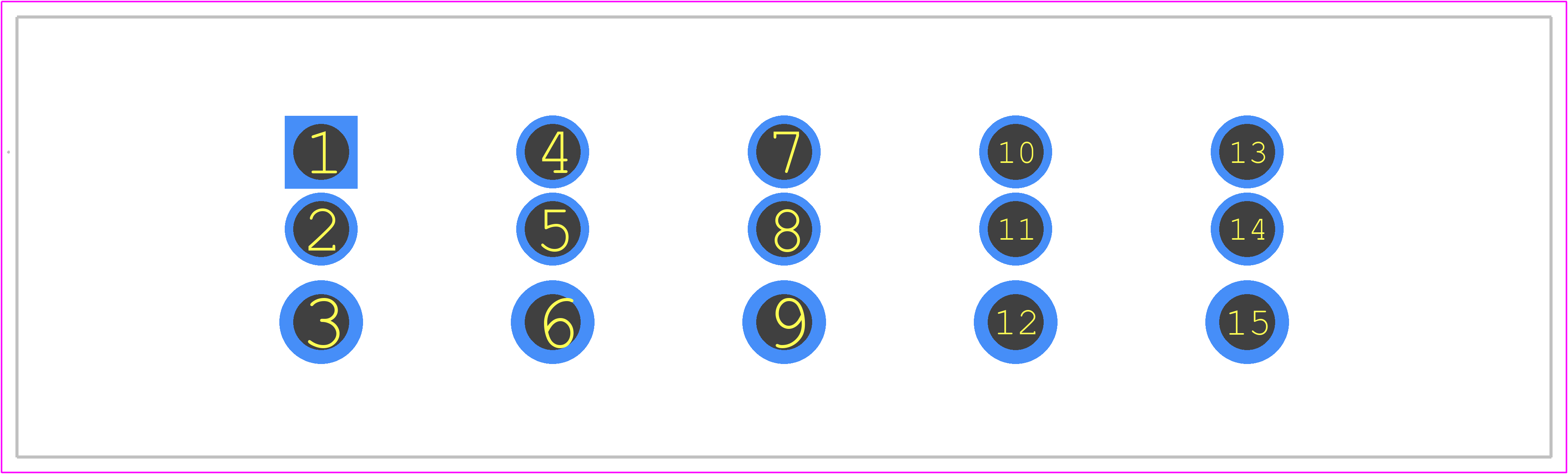

1793587 - Phoenix Contact PCB footprint - Other - Other - 1793587-1
click to zoom
3D Models
1793587 - Phoenix Contact - 3D model - Other - 1793587-1
click to zoom

1793587 Details

  • Manufacturer Part Number:

    1793587

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1793587 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1793587 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1793587 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, allowing for easy integration into existing systems.
  • The maximum current rating for the 1793587 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1793587 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.
  • The 1793587 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.
