1794930000 - Weidmüller

Description: PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 20, 90°, Solder pin length: 3.2 mm, tinned, black, Box

Download 1794930000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

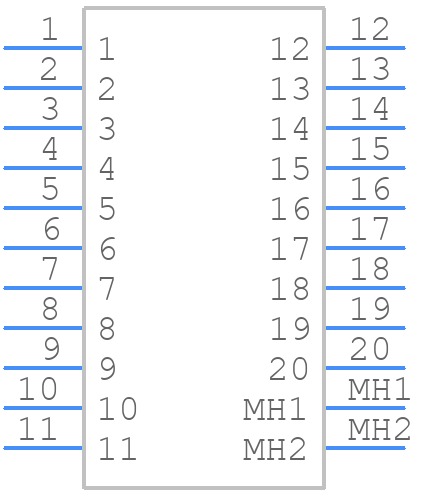

1794930000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

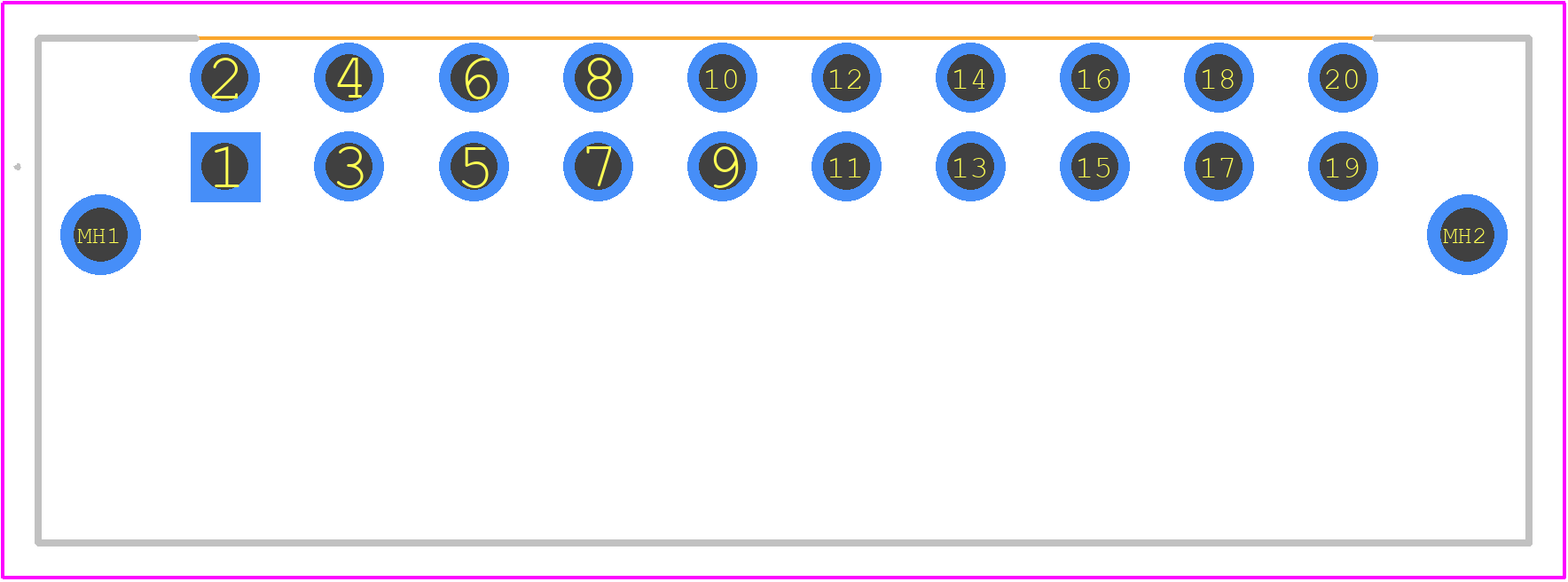

1794930000 - Weidmüller PCB footprint - Other - Other - 1794930000-3
click to zoom
3D Models
1794930000 - Weidmüller - 3D model - Other - 1794930000-3
click to zoom

1794930000 Details

  • Manufacturer Part Number:

    1794930000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: UL 94V-0; GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1794930000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1794930000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1794930000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1794930000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1794930000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1794930000 is typically used in industrial automation, process control, and power distribution applications, where reliable and secure connections are critical.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1794930000 Overview

Use the download button to access the 1794930000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17949, or try a keyword search, such as Terminals and Terminal Blocks
