1794950000 - Weidmüller

Description: PCB plug-in connector (board connection), 3.50 mm, Number of poles: 24, Outgoing elbow: 90°

Download 1794950000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1794950000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

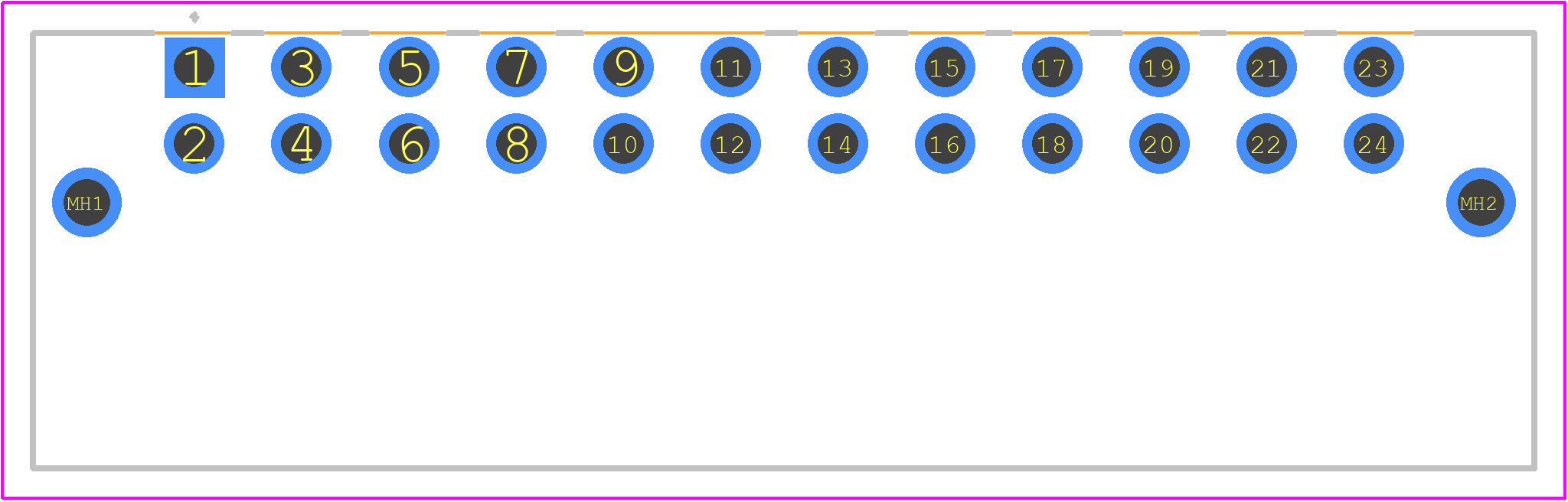

1794950000 - Weidmüller PCB footprint - Other - Other - 1794950000-3
click to zoom
3D Models
1794950000 - Weidmüller - 3D model - Other - 1794950000-3
click to zoom

1794950000 Details

  • Manufacturer Part Number:

    1794950000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    5.68

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CSA; EAC; DIN; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1794950000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1794950000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1794950000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces, allowing for easy integration into existing systems.
  • The maximum current rating of the 1794950000 is 10A per pin, making it suitable for use in applications that require high current handling.
  • Yes, the 1794950000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The typical lead time for delivery of the 1794950000 is 2-4 weeks, depending on the quantity and availability of the product.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1794950000 Overview

Use the download button to access the 1794950000 schematic symbol, PCB footprint, and 3D model.
