1796348 - Phoenix Contact

Description: MSTBV 2,5/ 4-GF-5,08 EX - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 4, product range: MSTBV 2,5/..-GF-EX, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5 EX, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method

Download 1796348 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1796348 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

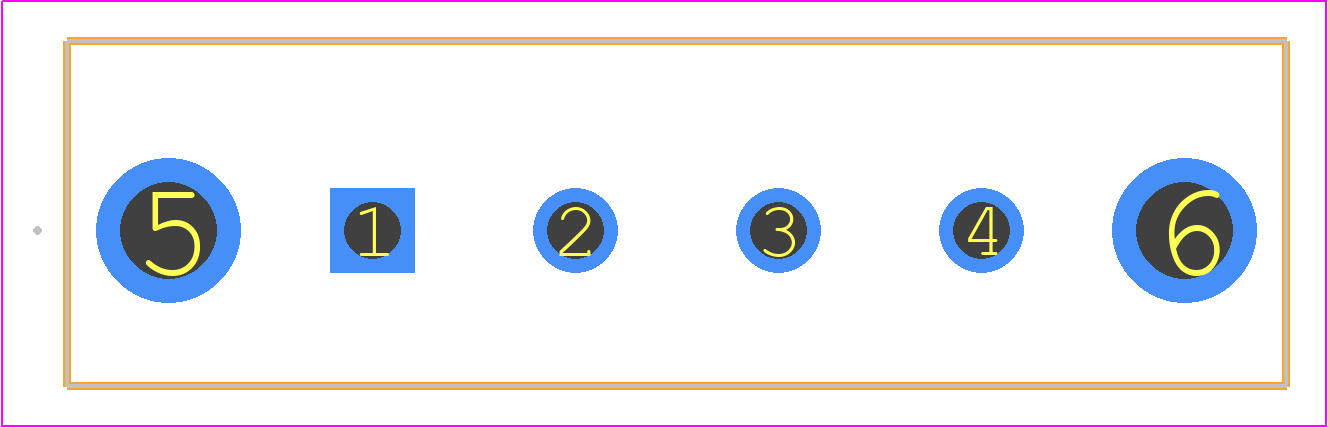

1796348 - Phoenix Contact PCB footprint - Other - Other - 1796348
click to zoom
3D Models
1796348 - Phoenix Contact - 3D model - Other - 1796348
click to zoom

1796348 Details

  • Manufacturer Part Number:

    1796348

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    12 A

  • Rated Voltage:

    176 V

  • Safety Approval:

    ATEX; CCC; IECEX; UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    13 AWG

1796348 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1796348 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1796348 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1796348 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1796348 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1796348 is typically used in industrial automation, machine building, and electrical engineering applications, where reliable and secure connections are required.
