179686-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Rows 3 | Number of Positions 104 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Housing Features: Centerline (Pitch) 2.8 MM | Centerline (Pitch) .11 INCH | Mechanical Attachment: Connector Mounting Type Board Mount | PCB Mount Alignment With | Mating Alignment With | Operation/Application: Circuit Application Power | Packaging Features: Packaging Method Pa

Download 179686-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
179686-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

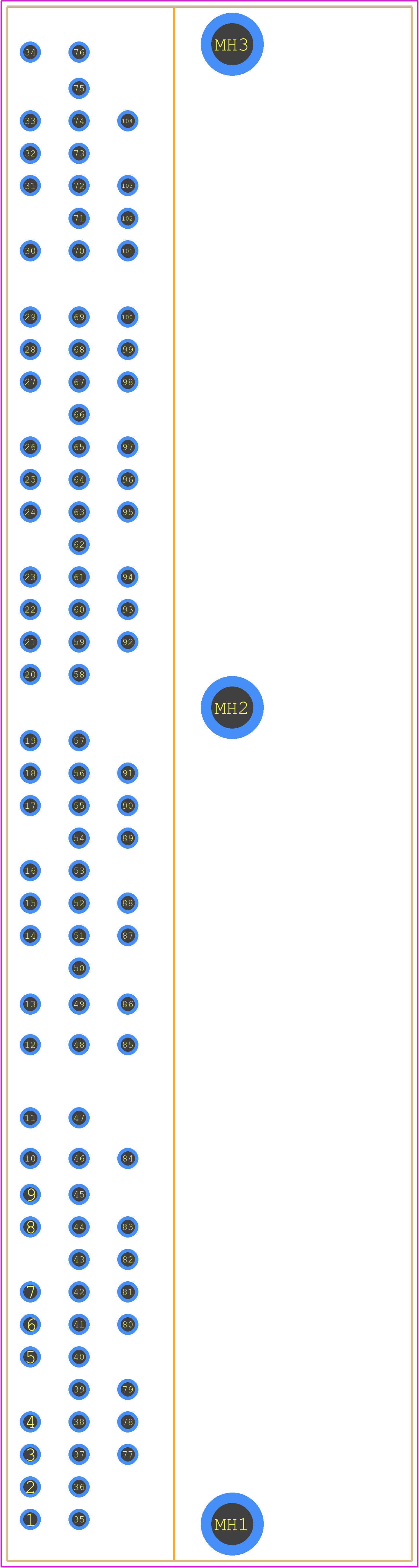

179686-6 - TE Connectivity PCB footprint - Other - Other - 179686-6-1
click to zoom
3D Models
179686-6 - TE Connectivity - 3D model - Other - 179686-6-1
click to zoom

179686-6 Details

  • Manufacturer Part Number:

    179686-6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.94 inch

  • Body Depth:

    1.37 inch

  • Body Length:

    5.27 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Information:

    179678;179679;179680;179681

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    104

179686-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 179686-6 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, automotive, and aerospace.
  • Yes, the 179686-6 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity up to 95% RH.
  • The maximum current rating for each contact is 3A, but it's recommended to derate the current based on the application's specific requirements and environmental conditions.
  • The 179686-6 connector is suitable for both power and signal transmission applications, with a frequency range of up to 1 GHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

179686-6 Overview

Use the download button to access the 179686-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17968, or try a keyword search, such as Combination Line Connectors
