179843-1 - TE Connectivity

Description: Configuration Features: Number of Positions 12 | PCB Mount Orientation Vertical | Number of Power Positions 12 | Number of Rows 3 | Number of Signal Positions 0 | Contact Features: Contact Current Rating (Max) 14 AMP | PCB Contact Termination Area Plating Material Thickness 1 MICM | Contact Retention Within Housing Without | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 7 AMP | Contact Type Tab | Contact Mating Area Plating Material Thickness 31.49 MICM | Contact Mating Ar

Download 179843-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
179843-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

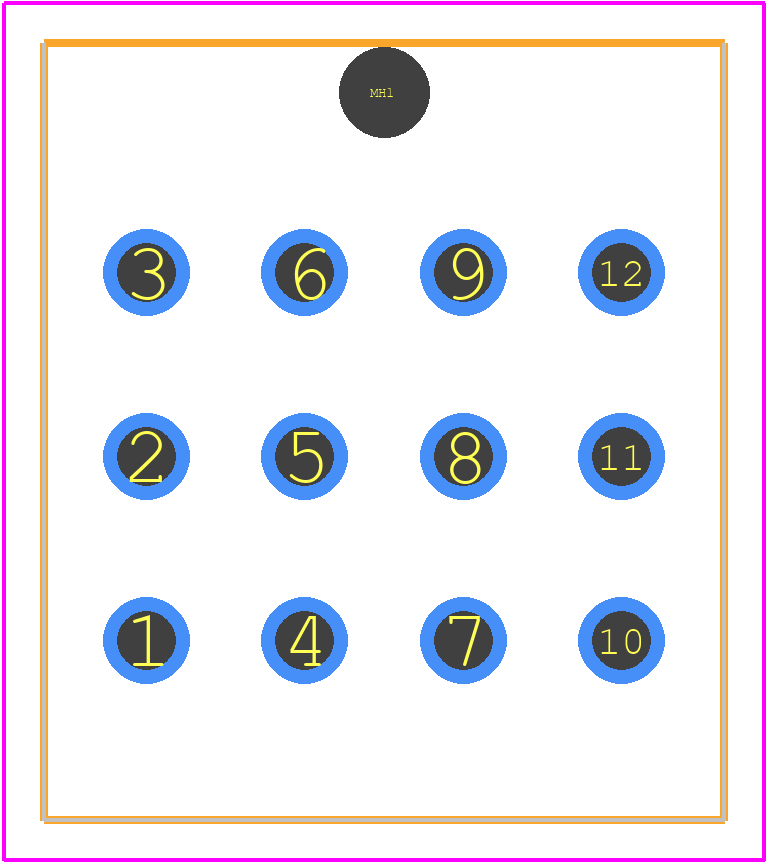

179843-1 - TE Connectivity PCB footprint - Other - Other - 179843-1-2
click to zoom
3D Models
179843-1 - TE Connectivity - 3D model - Other - 179843-1-2
click to zoom

179843-1 Details

  • Manufacturer Part Number:

    179843-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

179843-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 179843-1 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 179843-1 connector is rated for outdoor use, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a rating of IP67 (dust-tight and protected against immersion in water up to 1 meter for 30 minutes).
  • The maximum wire size that can be used with the 179843-1 connector is 1.5 mm² (16 AWG).
  • Yes, the 179843-1 connector is rated for high-temperature applications, with a maximum operating temperature of 125°C (257°F).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

179843-1 Overview

Use the download button to access the 179843-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17984, or try a keyword search, such as Power Connectors
