180-044-113R911 - NorComp

Description: Norcomp 44 Way Through Hole D-sub Connector Plug, 2.29mm Pitch, with 4-40 Spacer/Board Lock

Download 180-044-113R911 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 180-044-113R911 model

Email notifications will be applied after download.

Send part feedback

Symbol

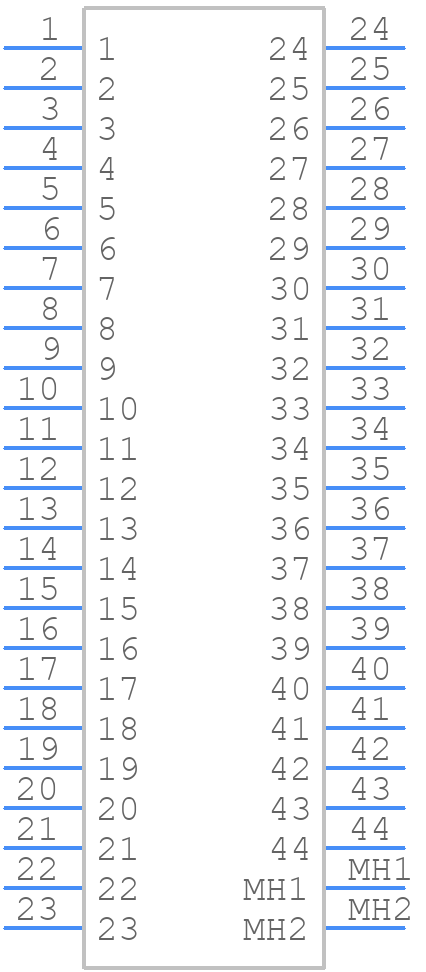

180-044-113R911 - NorComp - PCB symbol

PCB Footprints

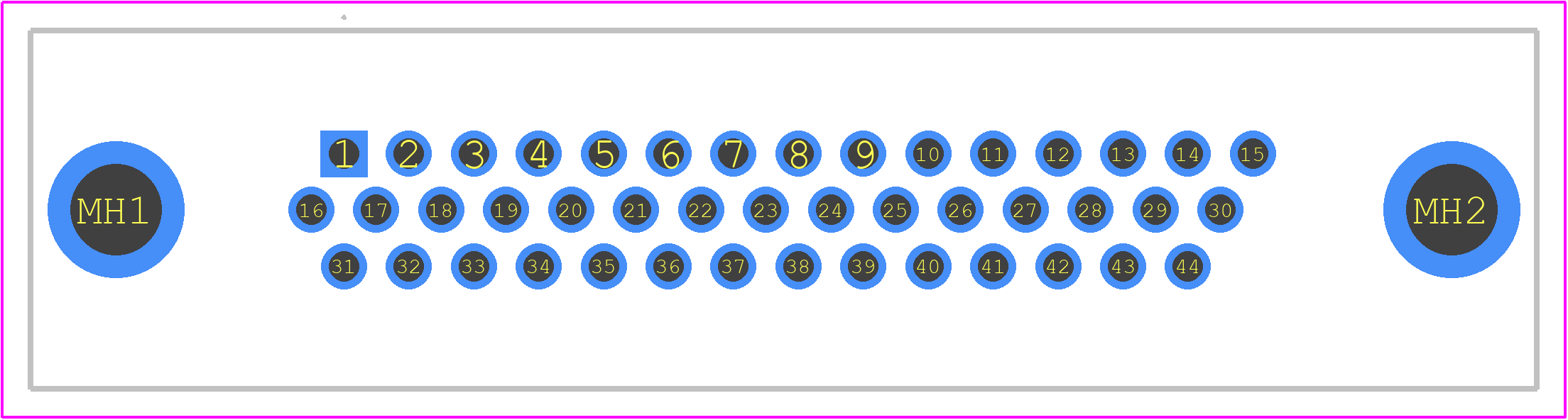

180-044-113R911 - NorComp PCB footprint - Other - Other - 180-044-113R911-3

3D Models

180-044-113R911 - NorComp - 3D model - Other - 180-044-113R911-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 180-044-113R911
Part Number 180-044-113R911
Manufacturer NorComp
Pin Count 46
Part Category Connector
Package Category Other
Footprint Name Other - 180-044-113R911-3
Released Date Sep 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

180-044-113R911 Details

Manufacturer Part Number:
180-044-113R911
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYAMIDE66
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
3/B
Termination Type:
SOLDER
Total Number of Contacts:
44
UL Flammability Code:
94V-0

180-044-113R911 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
Yes, the 180-044-113R911 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
The 180-044-113R911 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
The 180-044-113R911 has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
It's not recommended to use the 180-044-113R911 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed.
