Part Image

1803413 - Phoenix Contact

Description: MC 1,5/16-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: MC 1,5/..-G, pitch: 3.81 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5,

Download 1803413 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1803413 - Phoenix Contact - PCB symbol
click to zoom

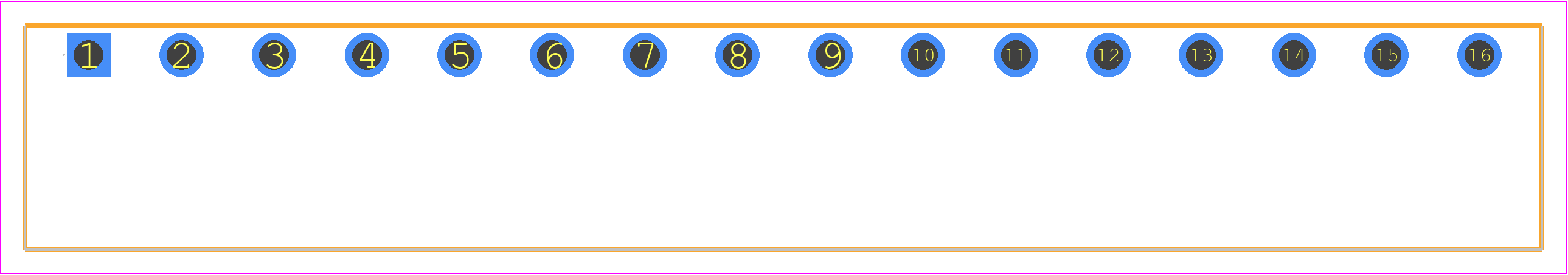

PCB Footprints
1803413 - Phoenix Contact PCB footprint - Other - Other - 1803413
click to zoom
3D Models
1803413 - Phoenix Contact - 3D model - Other - 1803413
click to zoom

1803413 Details

  • Manufacturer Part Number:

    1803413

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1803413 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1803413 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the 1803413 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The maximum operating temperature for the 1803413 connector is 125°C (257°F), making it suitable for use in high-temperature applications.
  • Yes, the 1803413 connector is suitable for use with aluminum wires, but it's recommended to use a wire with a minimum cross-section of 0.5 mm² to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1803413 Overview

Use the download button to access the 1803413 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18034, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
