1804713 - Phoenix Contact

Description: PCV 4/ 5-G-7,62 - PCB headers, nominal cross section: 4 mm<sup>2</sup>, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: PCV 4/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 2, plug-in system: COMBICON PC 4, Pin connector pattern alignment: Stand

Download 1804713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1804713 - Phoenix Contact - PCB symbol
click to zoom

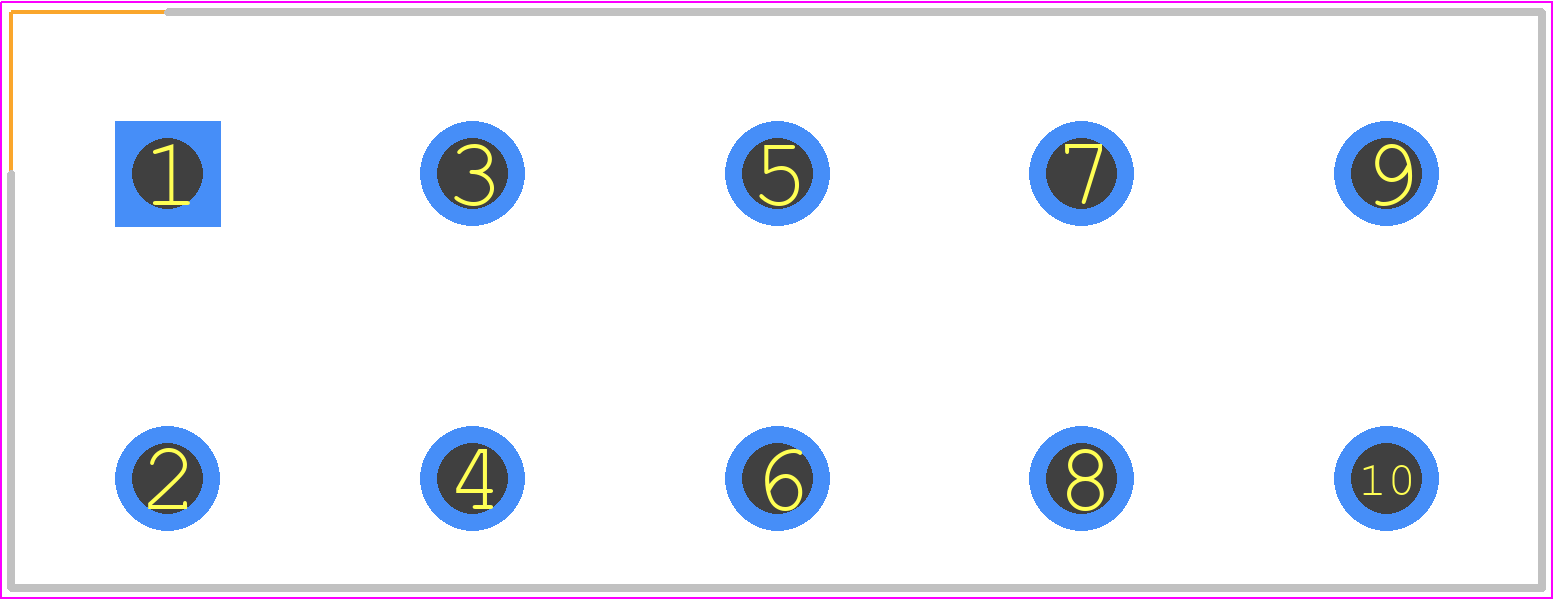

PCB Footprints
1804713 - Phoenix Contact PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 1804713
click to zoom
3D Models
1804713 - Phoenix Contact - 3D model - Header, Receptacle - Straight PTH Box - 1804713
click to zoom

1804713 Details

  • Manufacturer Part Number:

    1804713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    20 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    BV; CSA; CUL; DNV; EAC; GL; LR

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1804713 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1804713 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1804713 connector has a IP20 rating, which means it's protected against solid objects > 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • The 1804713 connector is rated for operating temperatures between -40°C and 125°C. However, the temperature range may vary depending on the specific application and materials used. Consult the datasheet and Phoenix Contact's technical support for specific guidance.
  • The 1804713 connector is designed for use with wires ranging from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). Phoenix Contact recommends using wires with a temperature rating of at least 125°C and a minimum insulation thickness of 0.5 mm.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1804713 Overview

Use the download button to access the 1804713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18047, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
