Part Image

1804726 - Phoenix Contact

Description: PCV 4/ 6-G-7,62 - PCB headers, nominal cross section: 4 mm<sup>2</sup>, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: PCV 4/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 2, plug-in system: COMBICON PC 4, Pin connector pattern alignment: Stand

Download 1804726 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1804726 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

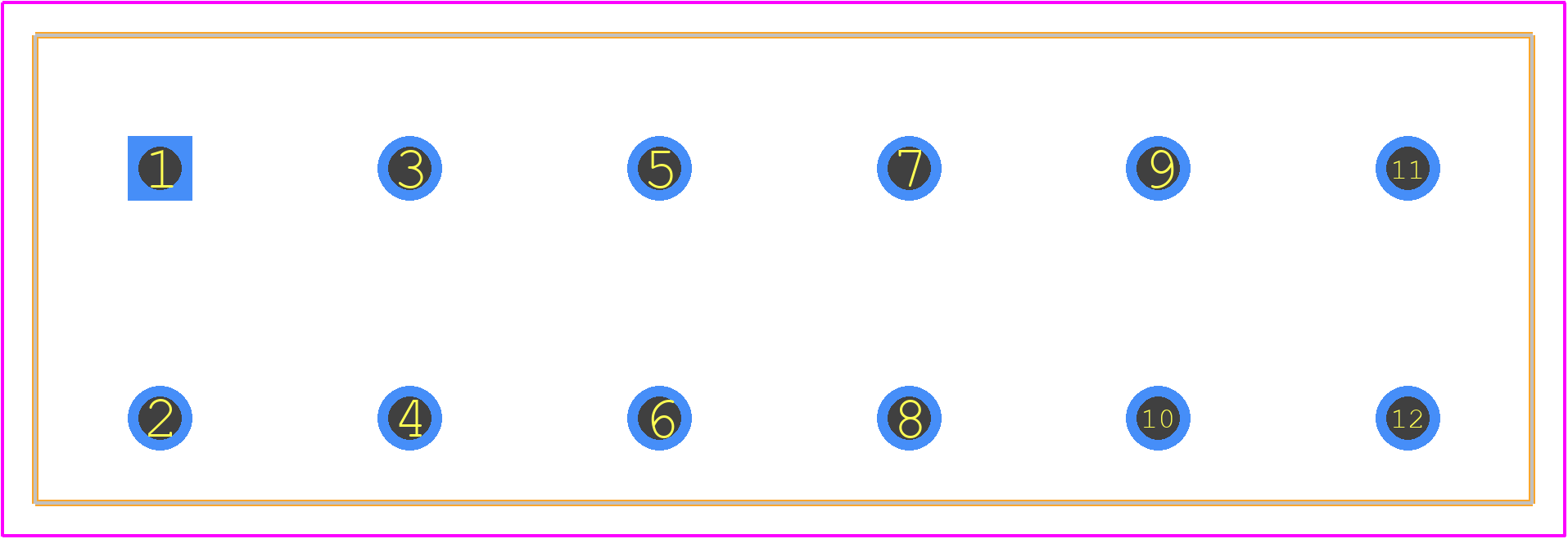

1804726 - Phoenix Contact PCB footprint - Other - Other - 1804726-2
click to zoom
3D Models
1804726 - Phoenix Contact - 3D model - Other - 1804726-2
click to zoom

1804726 Details

  • Manufacturer Part Number:

    1804726

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    20 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1804726 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's always best to consult the specific panel manufacturer's recommendations.
  • Yes, the 1804726 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, but it's essential to ensure proper mounting and screwing to maintain the connection's integrity.
  • The 1804726 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's crucial to ensure the connector is properly sealed and installed to maintain its protection rating.
  • While it's technically possible, using a different wire gauge than recommended may compromise the connector's performance and reliability. It's recommended to stick to the specified wire gauge range to ensure optimal performance.
  • To ensure a secure connection, make sure to follow the recommended PCB layout and footprint, and use the correct soldering technique and temperature profile. Additionally, verify the connector's orientation and alignment with the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1804726 Overview

Use the download button to access the 1804726 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18047, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
