1804852 - Phoenix Contact

Description: PC 4/ 8-G-7,62 - PCB headers, nominal cross section: 4 mm<sup>2</sup>, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PC 4/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 2, plug-in system: COMBICON PC 4, Pin connector pattern alignment: Standar

Download 1804852 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

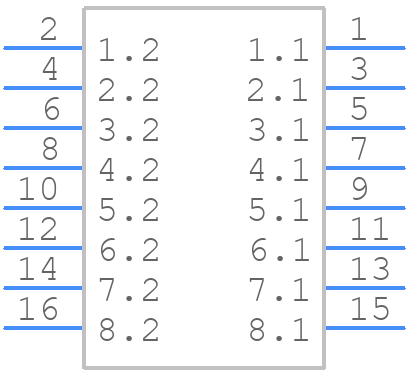

1804852 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

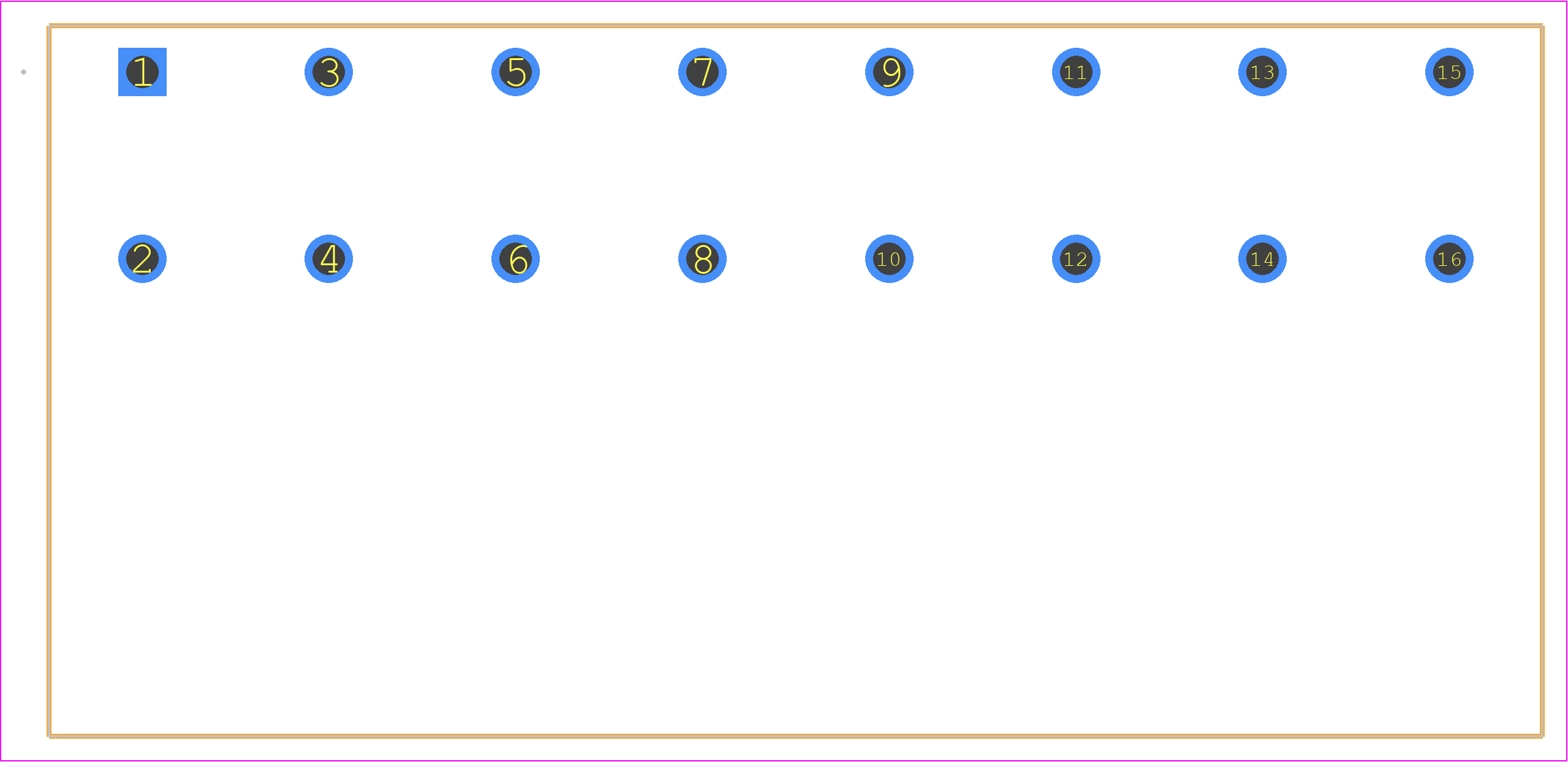

1804852 - Phoenix Contact PCB footprint - Other - Other - 1804852
click to zoom
3D Models
1804852 - Phoenix Contact - 3D model - Other - 1804852
click to zoom

1804852 Details

  • Manufacturer Part Number:

    1804852

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    20 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    BV; CSA; CUL; DNV; EAC; GL; LR

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1804852 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the PCB manufacturer's guidelines as well.
  • While the connector is designed for industrial use, it's not IP67-rated. For outdoor applications, consider using a connector with a higher IP rating or additional protection measures.
  • Properly clean the contacts before mating, ensure correct polarization, and apply the recommended torque. Also, consider using a connector with a secure locking mechanism.
  • The operating temperature range is -40°C to 125°C, but it's essential to consider the temperature rating of the PCB and other components in the system.
  • While the connector is designed for industrial use, it's not specifically designed for high-vibration applications. Consider using a connector with a more secure locking mechanism or additional vibration-resistant features.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1804852 Overview

Use the download button to access the 1804852 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18048, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
