1804865 - Phoenix Contact

Description: PC 4/ 9-G-7,62 - PCB headers, nominal cross section: 4 mm<sup>2</sup>, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: PC 4/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 2, plug-in system: COMBICON PC 4, Pin connector pattern alignment: Standar

Download 1804865 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

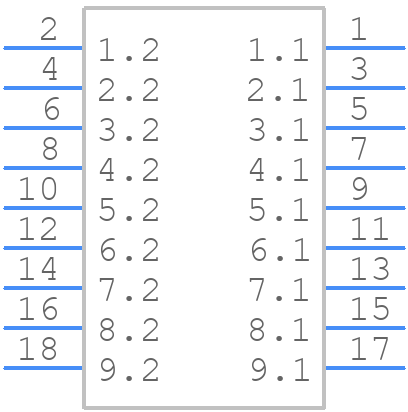

1804865 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

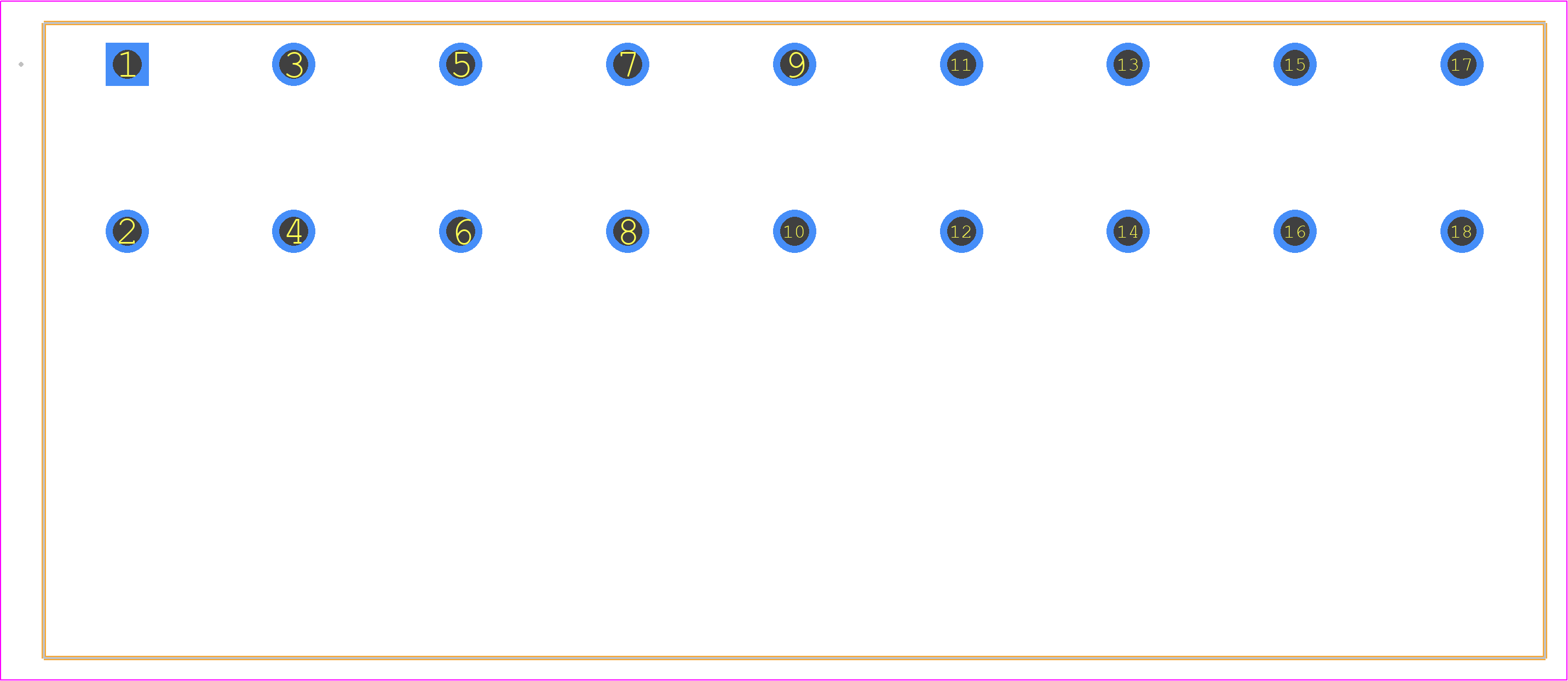

1804865 - Phoenix Contact PCB footprint - Other - Other - 1804865
click to zoom
3D Models
1804865 - Phoenix Contact - 3D model - Other - 1804865
click to zoom

1804865 Details

  • Manufacturer Part Number:

    1804865

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    20 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1804865 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1804865 is -40°C to 125°C.
  • Yes, the 1804865 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1804865 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1804865 is 2.5 mm² (AWG 14).
  • Yes, the 1804865 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1804865 Overview

Use the download button to access the 1804865 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18048, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
