Description:The 180-53 generates a low EMI output clock from a clock or crystal input. The device uses IDT's proprietary mix of analog and digital Phase-Locked Loop (PLL) technology to spread the frequency spectrum of the output, thereby reducing the frequency amplitude peaks by several dB. The 180-53 offers center spread selection of +/-0.625% and +/-1.875%. Refer to the MK1714-01/02 for the widest selection of input frequencies and multipliers. IDT offers a complete line of EMI reducing clock generators. Consult us w
Renesas provides a reference design guide for the 180M-53LFT, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent thermal issues.
Renesas recommends using a power management IC (PMIC) specifically designed for the 180M-53LFT, such as the Renesas ISL91211A. This PMIC provides the necessary power sequencing, voltage regulation, and monitoring functions to ensure reliable operation.
To minimize EMI and ensure EMC, Renesas recommends following proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components. Additionally, the 180M-53LFT has built-in EMI reduction features, such as spread spectrum clocking and slew rate control.
Renesas provides a power management framework for the 180M-53LFT, which includes dynamic voltage and frequency scaling (DVFS) and power gating. By using these features, designers can optimize the device's performance for low-power applications, reducing power consumption and heat generation.
Renesas offers a range of development tools and SDKs for the 180M-53LFT, including the Renesas Synergy Platform, which provides a comprehensive development environment, including compilers, debuggers, and middleware. Additionally, Renesas partners with third-party vendors to offer specialized tools and SDKs for specific applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
180M-53LFT Overview

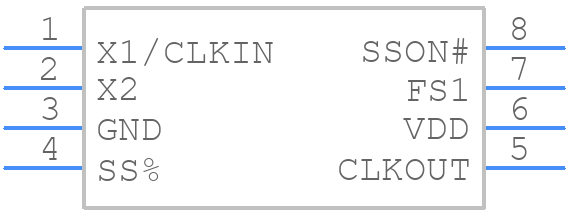

Use the download button to access the 180M-53LFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 180M-,
or try a keyword search, such as Clock Generators
