181-026-213R531 - NorComp

Description: D-Sub High Density Connectors RA 26POS FEM SPCC

Download 181-026-213R531 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 181-026-213R531 model

Email notifications will be applied after download.

Send part feedback

Symbol

181-026-213R531 - NorComp - PCB symbol

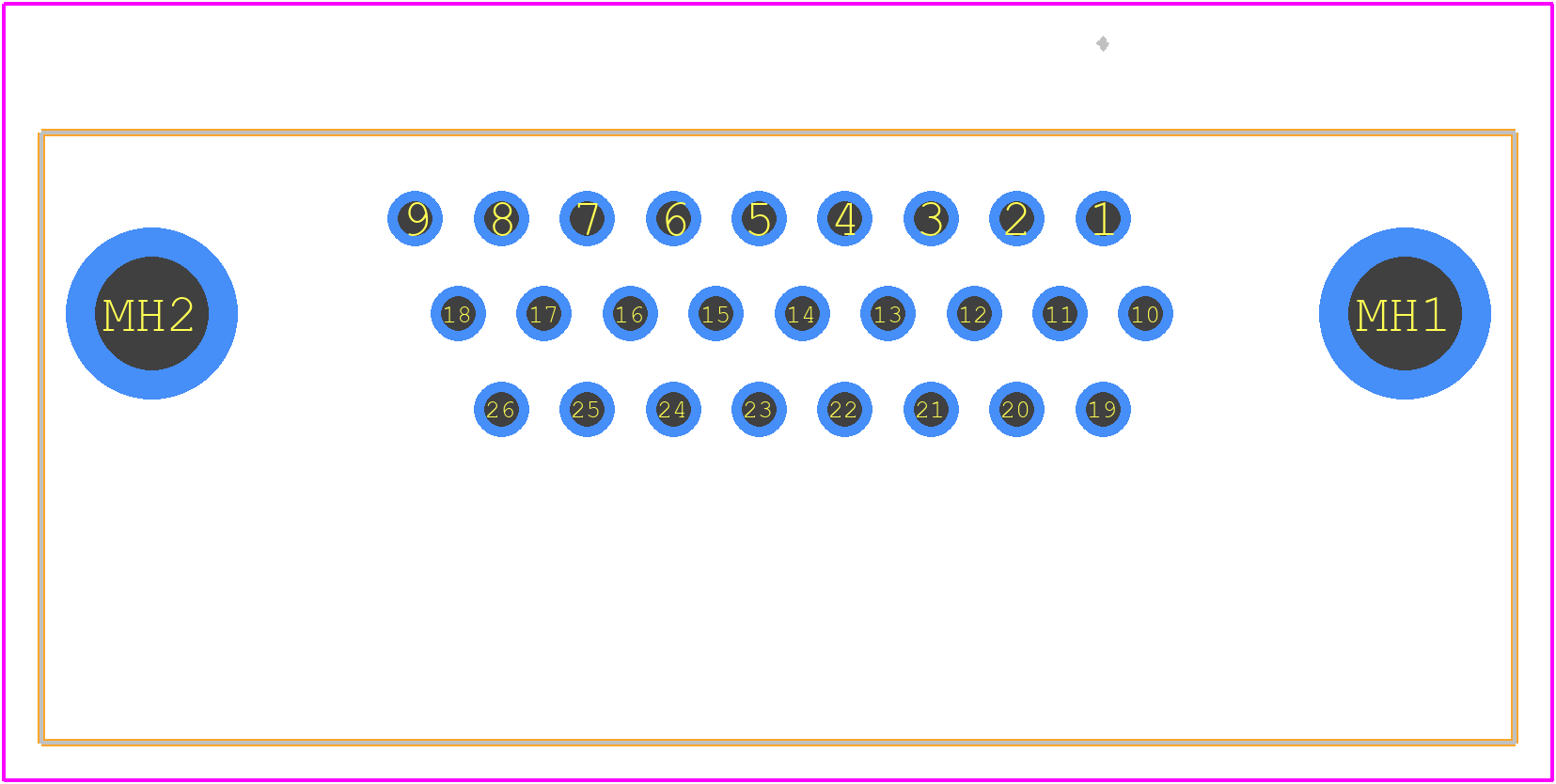

PCB Footprints

181-026-213R531 - NorComp PCB footprint - Other - Other - 181-026-213R531-2

3D Models

181-026-213R531 - NorComp - 3D model - Other - 181-026-213R531-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 181-026-213R531
Part Number 181-026-213R531
Manufacturer NorComp
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - 181-026-213R531-2
Released Date Apr 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

181-026-213R531 Details

Manufacturer Part Number:
181-026-213R531
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
2/A
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

181-026-213R531 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 181-026-213R531 is designed to withstand high-vibration environments, making it suitable for use in industrial, aerospace, and defense applications.
Yes, the 181-026-213R531 is sealed to IP67, making it suitable for outdoor use and able to withstand exposure to moisture and dust.
The operating temperature range for the 181-026-213R531 is -40°C to 125°C (-40°F to 257°F).
Yes, the 181-026-213R531 is designed for use with cable assemblies and can be terminated with a variety of cable types and sizes.
