181-044-213R531 - NorComp

Description: 44 Position D-Sub, High Density Receptacle, Female Sockets Connector

Download 181-044-213R531 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 181-044-213R531 model

Email notifications will be applied after download.

Send part feedback

Symbol

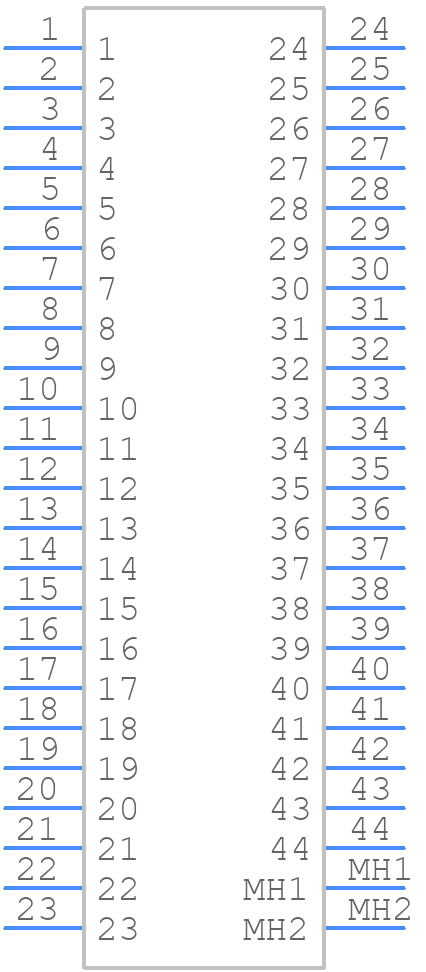

181-044-213R531 - NorComp - PCB symbol

PCB Footprints

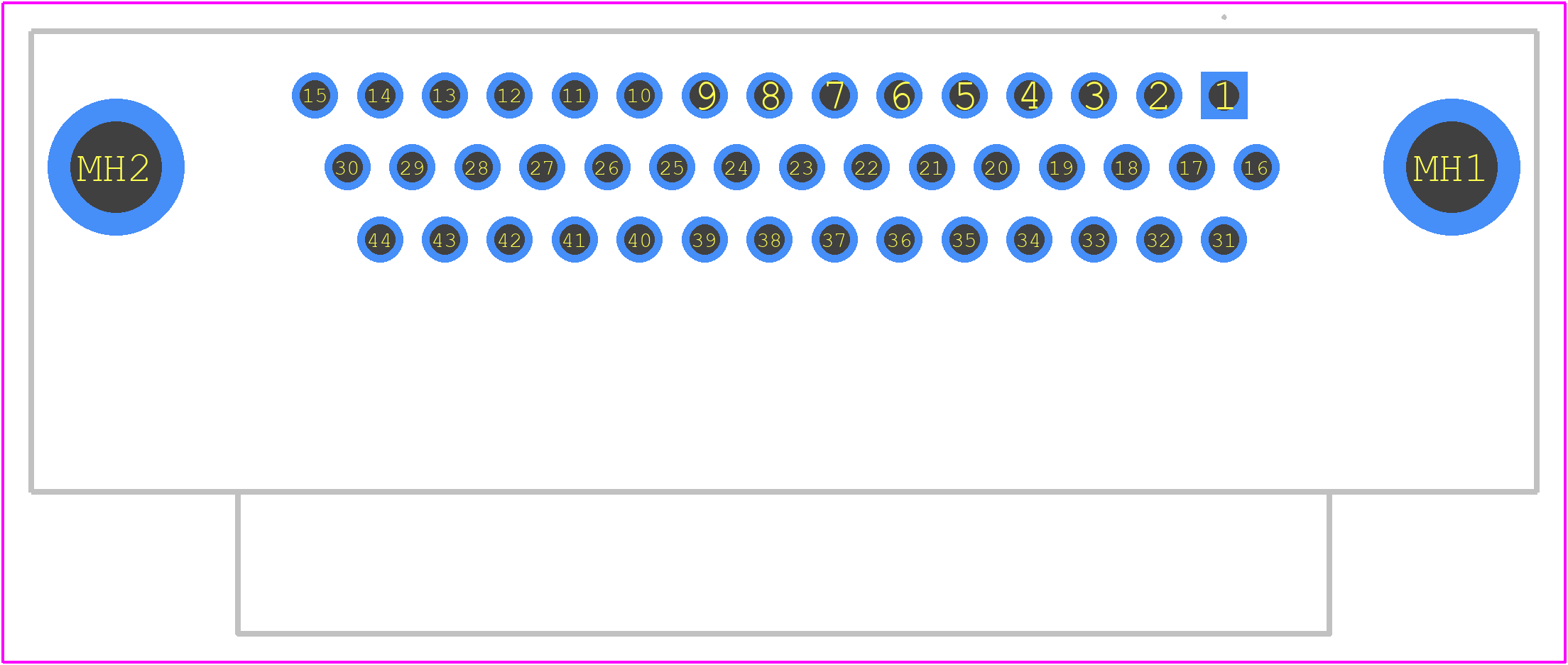

181-044-213R531 - NorComp PCB footprint - Other - Other - 181-044-213R531-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 181-044-213R531
Part Number 181-044-213R531
Manufacturer NorComp
Pin Count 46
Part Category Connector
Package Category Other
Footprint Name Other - 181-044-213R531-3
Released Date Sep 17, 2019
Last Modified Date Feb 10, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

181-044-213R531 Details

Manufacturer Part Number:
181-044-213R531
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
3/B
Termination Type:
SOLDER
Total Number of Contacts:
44
UL Flammability Code:
94V-0

181-044-213R531 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 181-044-213R531 is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-55302.
The operating temperature range for the 181-044-213R531 is -55°C to 125°C (-133°F to 257°F).
Yes, the 181-044-213R531 is designed to withstand harsh environments and meets the requirements of MIL-DTL-55302 for resistance to corrosion and moisture.
Yes, the 181-044-213R531 is designed for use with cable assemblies and can be terminated with a variety of cable types and sizes.
