1813350000 - Weidmüller

Description: PCB connector (board connection), 1000 V, 78.3 A, Pitch in mm: 10.16, Number of poles: 4, THT solder connection, Box

Download 1813350000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1813350000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

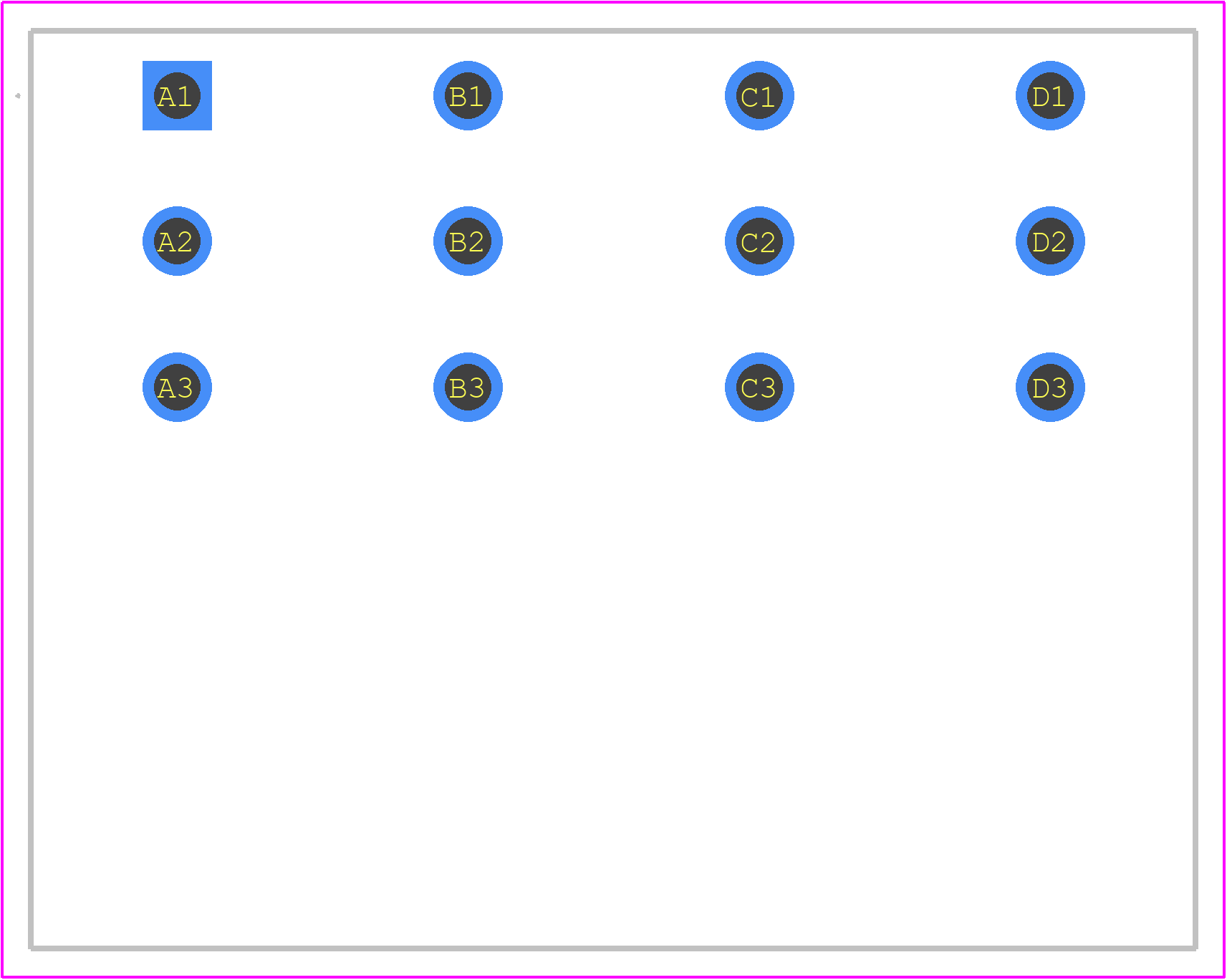

1813350000 - Weidmüller PCB footprint - Other - Other - 1813350000-2
click to zoom
3D Models
1813350000 - Weidmüller - 3D model - Other - 1813350000-2
click to zoom

1813350000 Details

  • Manufacturer Part Number:

    1813350000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE
