1813420000 - Weidmüller

Description: PCB connector (board connection), 1000 V, 78.3 A, Pitch in mm: 10.16, Number of poles: 3, THT solder connection, Box

Download 1813420000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1813420000 - Weidmüller - PCB symbol
click to zoom

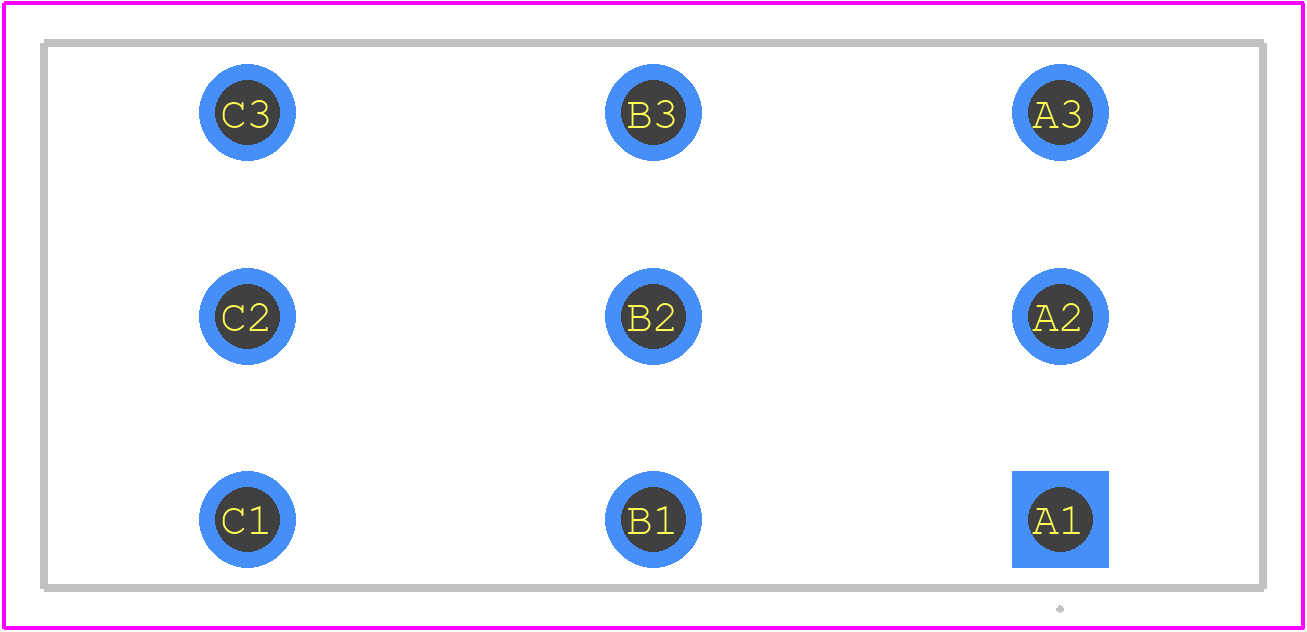

PCB Footprints
1813420000 - Weidmüller PCB footprint - Other - Other - 1813420000-2
click to zoom
3D Models
1813420000 - Weidmüller - 3D model - Other - 1813420000-2
click to zoom

1813420000 Details

  • Manufacturer Part Number:

    1813420000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.68

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

1813420000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1813420000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1813420000 connector is designed to be used in harsh environments and meets the requirements of IP67 and IP69K, making it resistant to dust, water, and high-pressure cleaning.
  • The 1813420000 connector has a mating cycle rating of 500 cycles, making it suitable for use in applications where frequent connections and disconnections are required.
  • Yes, the 1813420000 connector is designed to withstand high-vibration applications and meets the requirements of DIN EN 61373, making it suitable for use in applications such as rail and transportation.
  • Yes, the 1813420000 connector is designed to be compatible with other Weidmüller products, including their range of terminals, connectors, and interfaces, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1813420000 Overview

Use the download button to access the 1813420000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18134, or try a keyword search, such as Power Connectors
