1814553 - Phoenix Contact

Description: PTSM 0,5/ 8-2,5-H THR WH R32 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: PTSM 0,5/..-H-THR WH, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: THR soldering / wave soldering, conductor/PCB connection direction: 0 °, color: signal white, Pin layout: Linear pinning, Solder pin [P]: 2.1 mm, number of solder pins pe

Download 1814553 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1814553 - Phoenix Contact - PCB symbol
click to zoom

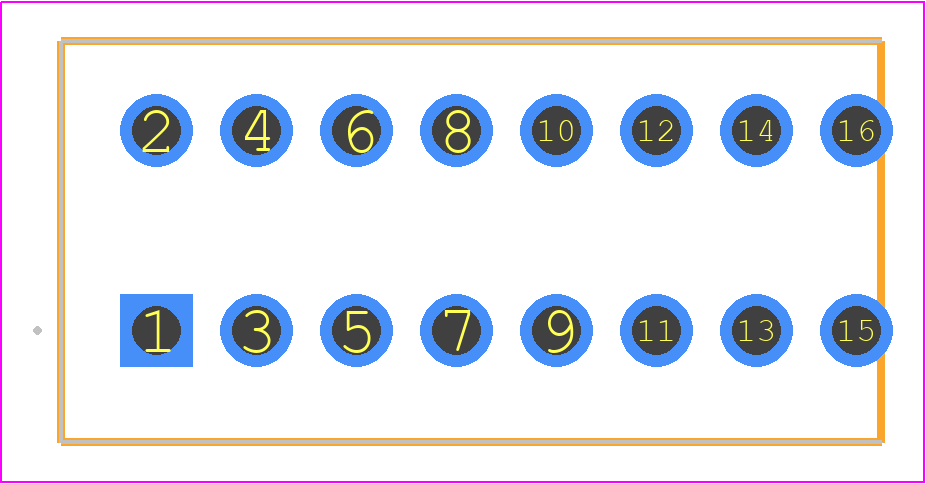

PCB Footprints
1814553 - Phoenix Contact PCB footprint - Other - Other - 1814553
click to zoom
3D Models
1814553 - Phoenix Contact - 3D model - Other - 1814553
click to zoom

1814553 Details

  • Manufacturer Part Number:

    1814553

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1814553 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1814553 is -40°C to 125°C.
  • Yes, the 1814553 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1814553 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The 1814553 can accommodate wire sizes up to 2.5 mm² (14 AWG).
  • Yes, the 1814553 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1814553 Overview

Use the download button to access the 1814553 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18145, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
