1817631 - Phoenix Contact

Description: MC 1,5/ 4-GF-3,5-LR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MC 1,5/..-GF-LR, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern ali

Download 1817631 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1817631 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

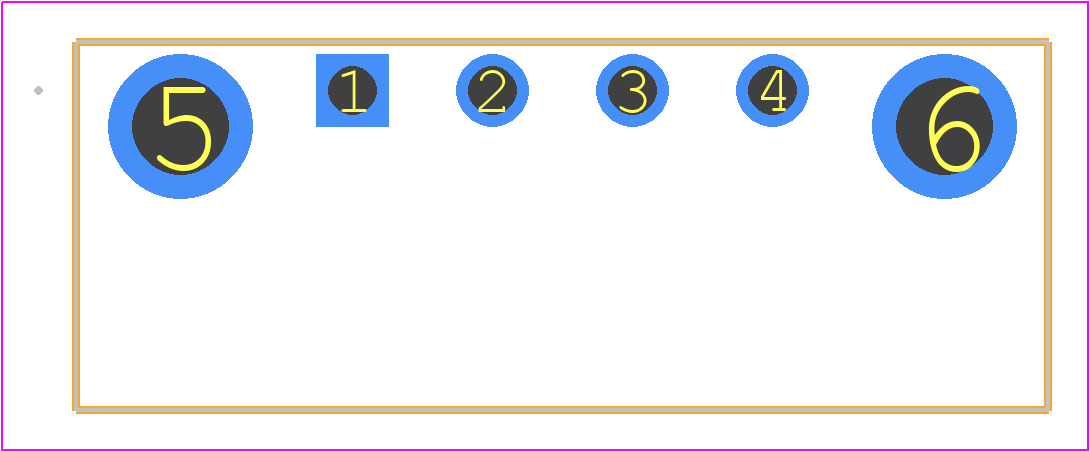

1817631 - Phoenix Contact PCB footprint - Other - Other - 1817631
click to zoom
3D Models
1817631 - Phoenix Contact - 3D model - Other - 1817631
click to zoom

1817631 Details

  • Manufacturer Part Number:

    1817631

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB;CUL;EAC;IECEE;UL;VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1817631 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1817631 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6.
  • Yes, the connector has a IP67 rating, making it suitable for outdoor use and protected against dust and water ingress.
  • The operating temperature range for the 1817631 connector is -40°C to 125°C.
  • While the datasheet specifies AWG 24-18, the connector can accommodate other wire sizes with the use of adapters or specialized contacts. Consult Phoenix Contact for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1817631 Overview

Use the download button to access the 1817631 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18176, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
