1817657 - Phoenix Contact

Description: MC 1,5/ 6-GF-3,5-LR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MC 1,5/..-GF-LR, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern ali

Download 1817657 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1817657 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

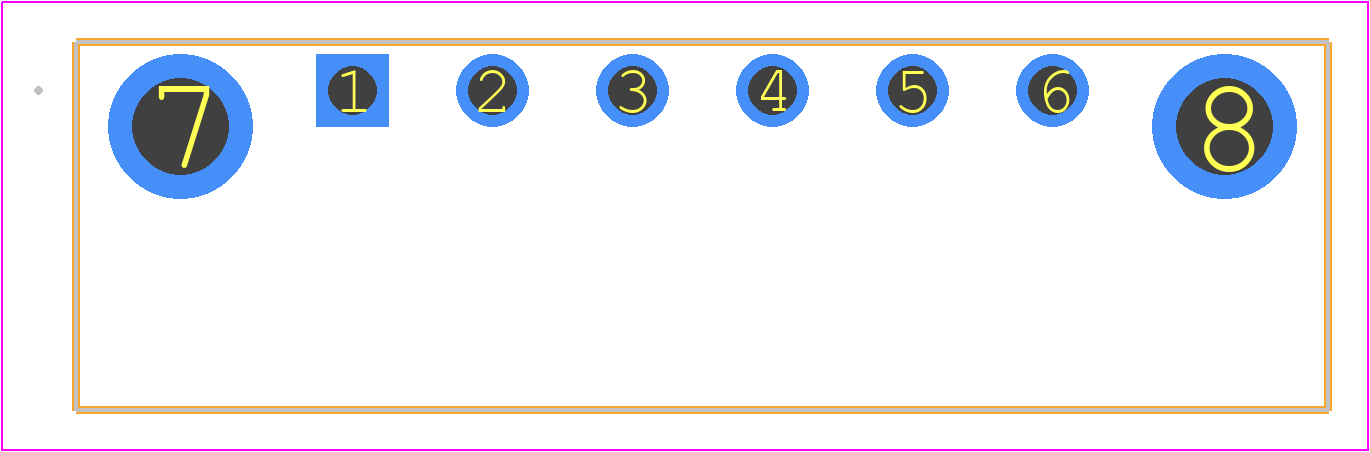

1817657 - Phoenix Contact PCB footprint - Other - Other - 1817657
click to zoom
3D Models
1817657 - Phoenix Contact - 3D model - Other - 1817657
click to zoom

1817657 Details

  • Manufacturer Part Number:

    1817657

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1817657 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1817657 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1817657 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The 1817657 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 1817657 connector is designed to accept stranded wires with a wire size range of 0.5 mm² to 2.5 mm².
