1818559 - Phoenix Contact

Description: DMC 1,5/ 7-G1F-3,5-LRP20THRR56 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 14, number of rows: 2, number of positions: 7, number of connections: 14, product range: DMC 1,5/..-G1F-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFM

Download 1818559 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1818559 - Phoenix Contact - PCB symbol
click to zoom

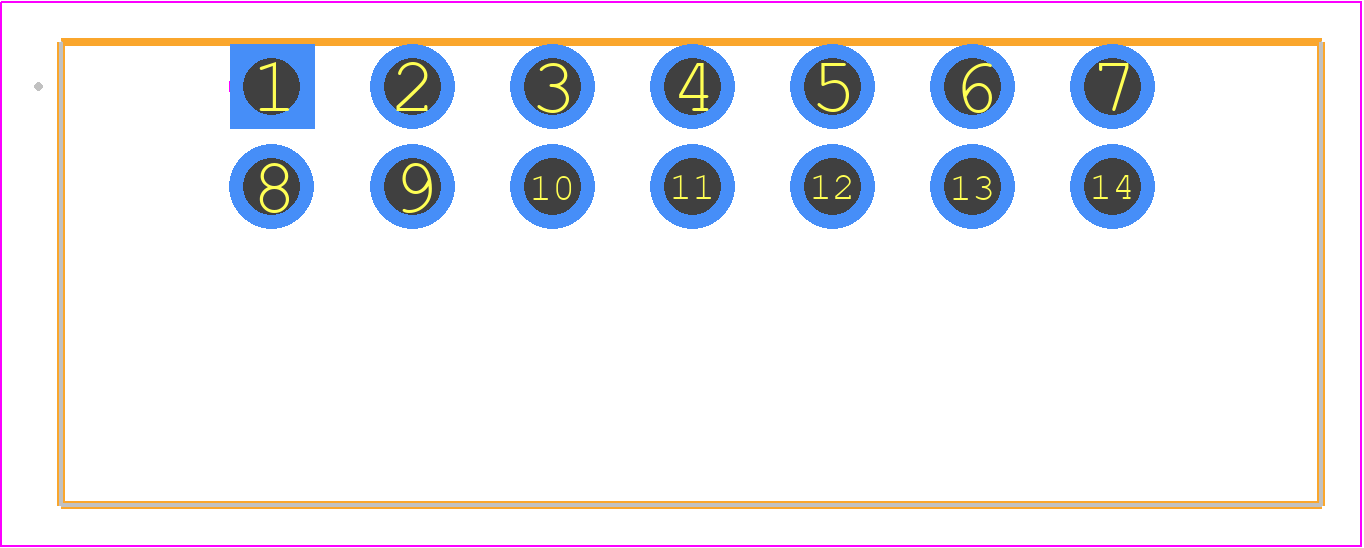

PCB Footprints
1818559 - Phoenix Contact PCB footprint - Other - Other - 1818559
click to zoom
3D Models
1818559 - Phoenix Contact - 3D model - Other - 1818559
click to zoom

1818559 Details

  • Manufacturer Part Number:

    1818559

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    7

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1818559 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact technical manual.
  • Yes, the 1818559 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • While the connector is not specifically rated for outdoor use, it can be used in outdoor environments with proper protection, such as using a waterproof housing or conformal coating.
  • The operating temperature range for the 1818559 connector is -40°C to +125°C, as specified in the datasheet.
  • No, the 1818559 connector is designed for wire gauges up to 1.5 mm². Using a larger wire gauge may compromise the connection reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1818559 Overview

Use the download button to access the 1818559 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18185, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
