182-009-113R181 - NorComp

Description: D-Sub Standard Connectors 9P Male R/A ground strap 4-40 standoffs

Download 182-009-113R181 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 182-009-113R181 model

Email notifications will be applied after download.

Send part feedback

Symbol

182-009-113R181 - NorComp - PCB symbol

PCB Footprints

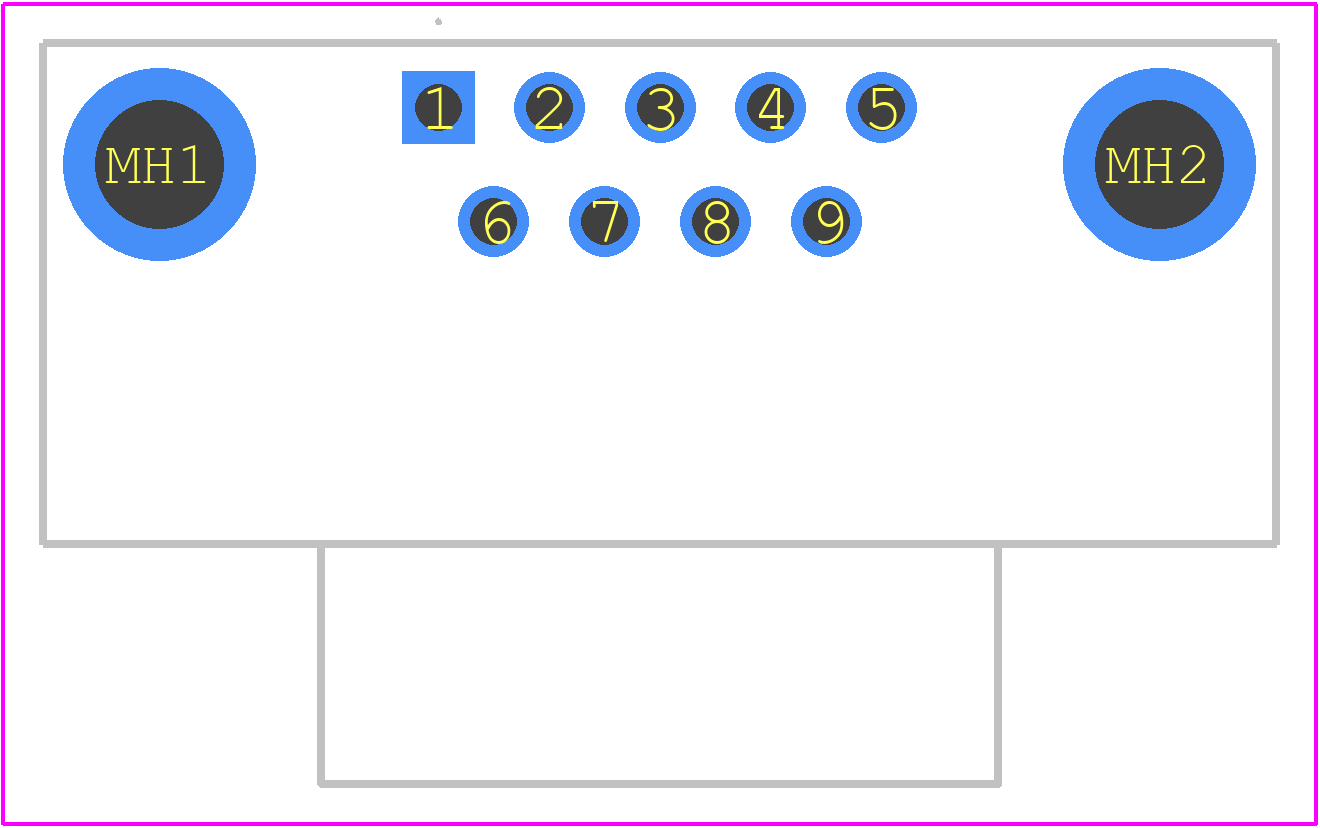

182-009-113R181 - NorComp PCB footprint - Other - Other - 182-009-113R181-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 182-009-113R181
Part Number 182-009-113R181
Manufacturer NorComp
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - 182-009-113R181-1
Released Date Jan 8, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

182-009-113R181 Details

Manufacturer Part Number:
182-009-113R181
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8.5
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9
UL Flammability Code:
94V-0

182-009-113R181 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
Yes, the 182-009-113R181 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
The 182-009-113R181 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
The operating temperature range for the 182-009-113R181 is -40°C to 125°C (-40°F to 257°F).
It's not recommended to use the 182-009-113R181 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed.

Trust Checks

Community Provided

System Verified

Community Approved

182-009-113R181 Overview

Use the download button to access the 182-009-113R181 schematic symbol and PCB footprint.
