182-037-113R161 - NorComp

Description: D-Sub Standard Connectors 37P Male R/A inside ground straps

Download 182-037-113R161 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 182-037-113R161 model

Email notifications will be applied after download.

Send part feedback

Symbol

182-037-113R161 - NorComp - PCB symbol

PCB Footprints

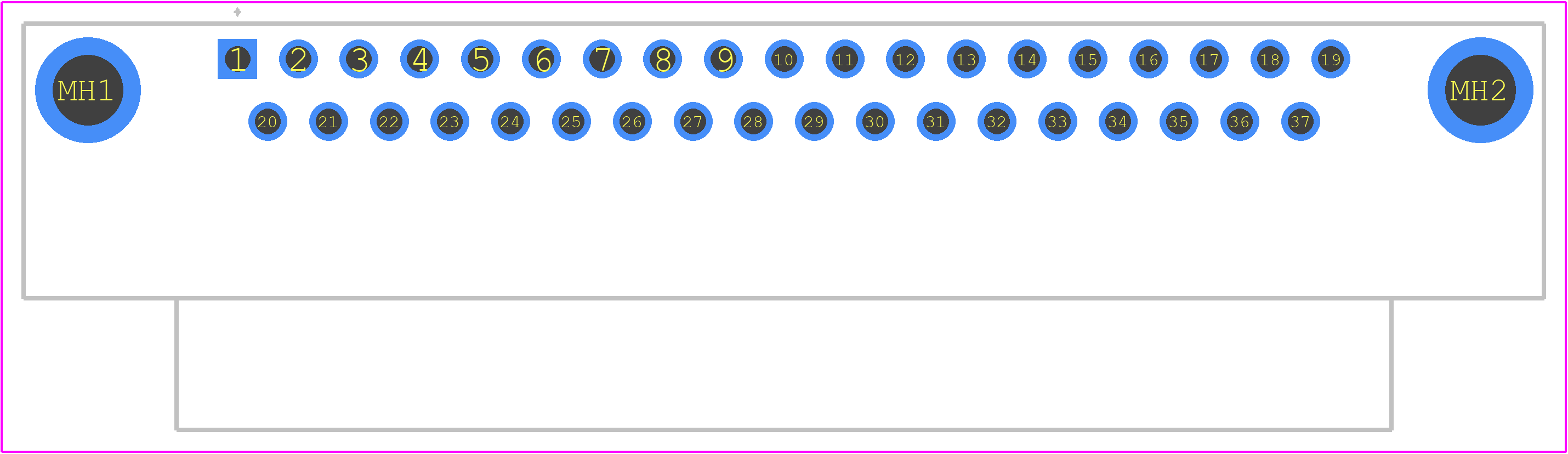

182-037-113R161 - NorComp PCB footprint - Other - Other - 182-037-113R161-1

3D Models

182-037-113R161 - NorComp - 3D model - Other - 182-037-113R161-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 182-037-113R161
Part Number 182-037-113R161
Manufacturer NorComp
Pin Count 39
Part Category Connector
Package Category Other
Footprint Name Other - 182-037-113R161-1
Released Date Oct 1, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

182-037-113R161 Details

Manufacturer Part Number:
182-037-113R161
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
NorComp
YTEOL:
8.5
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE9T
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
4/C
Termination Type:
SOLDER
Total Number of Contacts:
37
UL Flammability Code:
94V-0

182-037-113R161 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 182-037-113R161 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
The operating temperature range of the 182-037-113R161 is -55°C to 125°C (-133°F to 257°F).
Yes, the 182-037-113R161 is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The mating cycle life of the 182-037-113R161 is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
